03/2003
4-75
8850/ 510DP
REP 9.7
Repairs and Adjustments

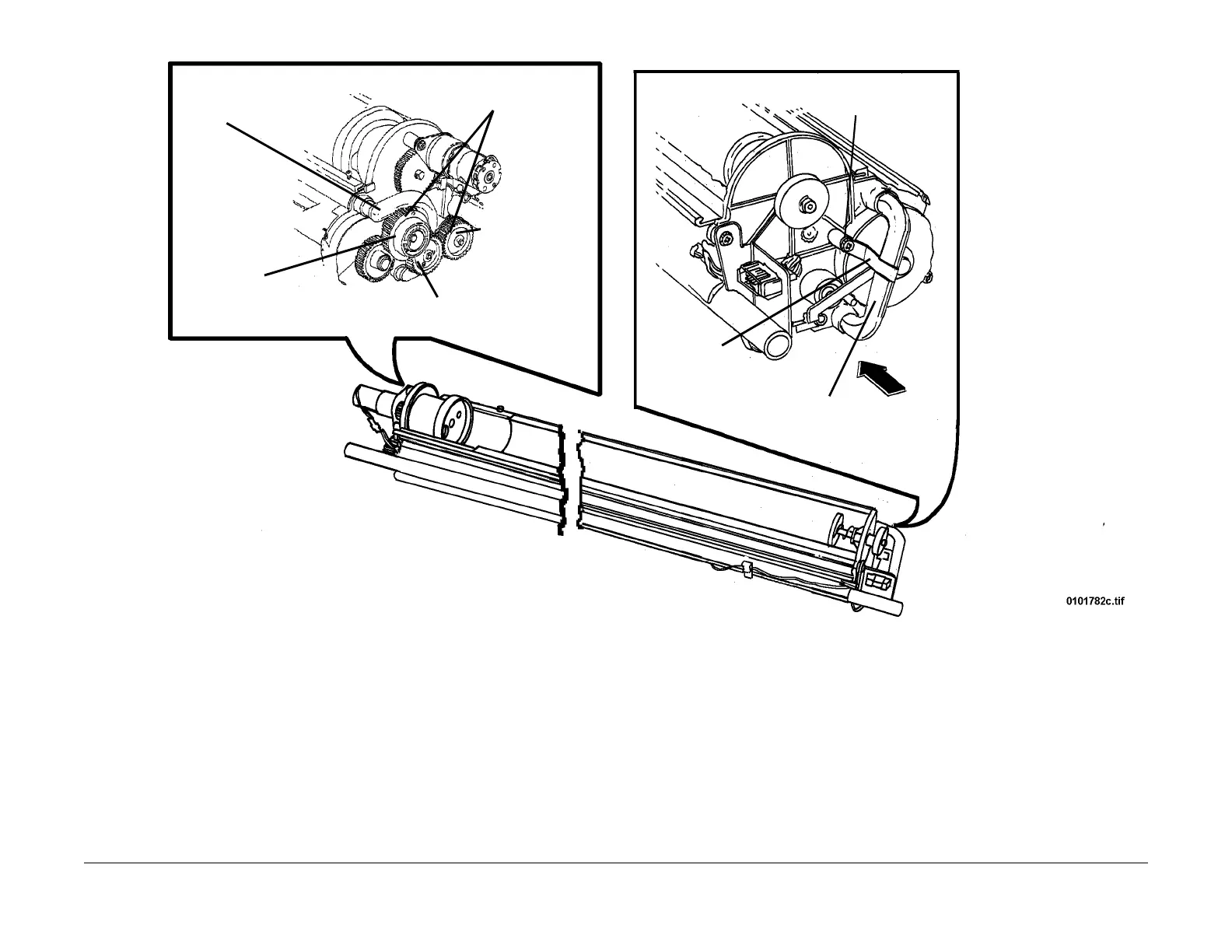

Figure 4 Reinstalling the Pressure Equalizer Tubes
1
Reinstall the Pressure
Equalizer Tube
3
Reinstall the gear
2
Reinstall the gear
4
Reinstall the gear
and the Grip Ring
5
Reinstall the Pressure
Equalizer Tube
6
Reinstall the Pressure
Equalizer Tube
Retainer
7
Reinstall the screw
Flanges
