Xerox 8850 Service Manual

03/2003
4-99
8850/ 510DP
REP 9.20
Repairs and Adjustments

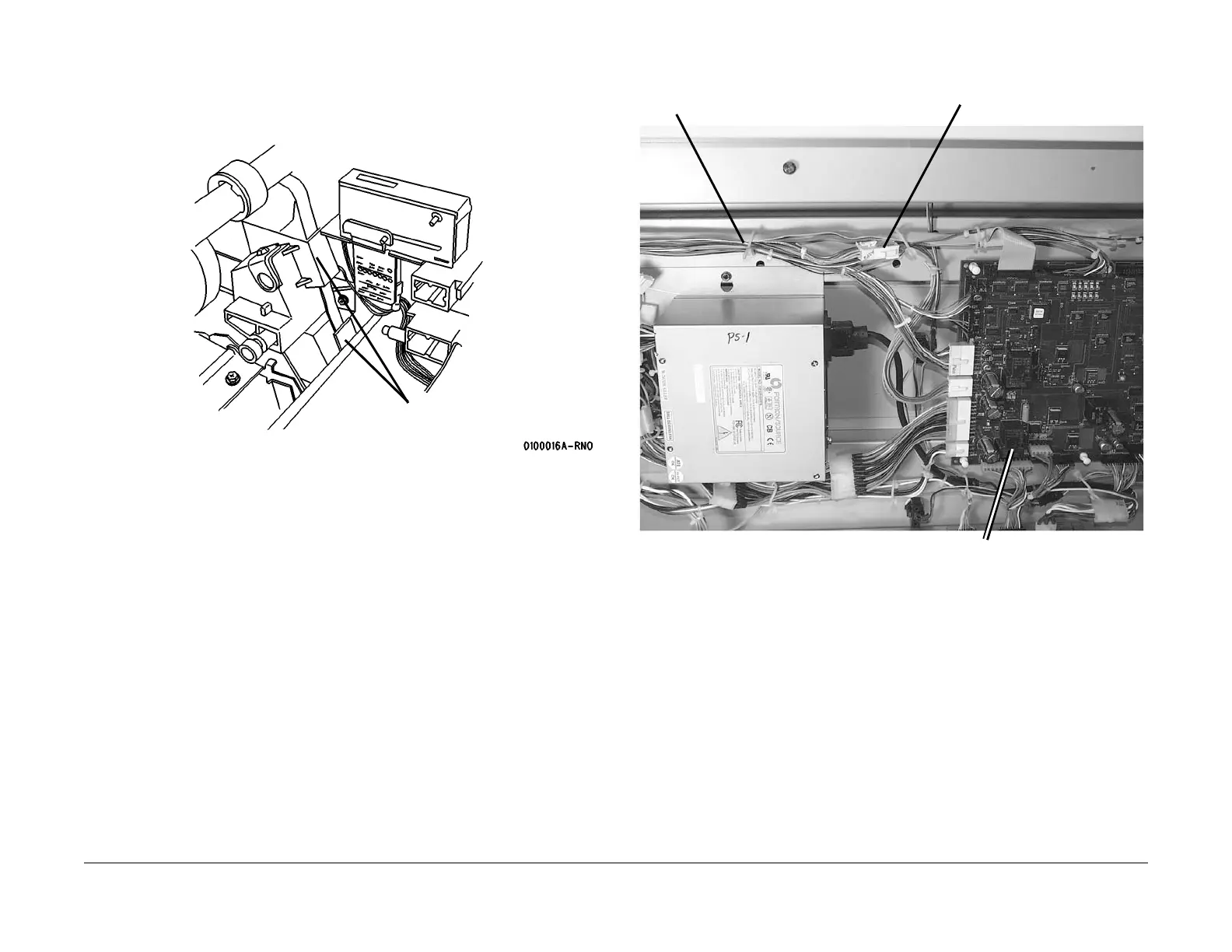

12. (Figure 6): Continue to pull the Video Cable through the hole after releasing it from the
cable guides.
Figure 6 Preparing the Video Cable
13. (Figure 7): Disconnect A5P2 and prepare the harness for removal.
Figure 7 Preparing the Harness for Removal
2
Pull the cable up
to the level of the
Image Module
1
Release the cable
2
Release the harness from the cable
clamps
1
Disconnect A5P2
Main PWB
