Xerox 8850 Service Manual

03/2003
4-98
8850/ 510DP
REP 9.20
Repairs and Adjustments

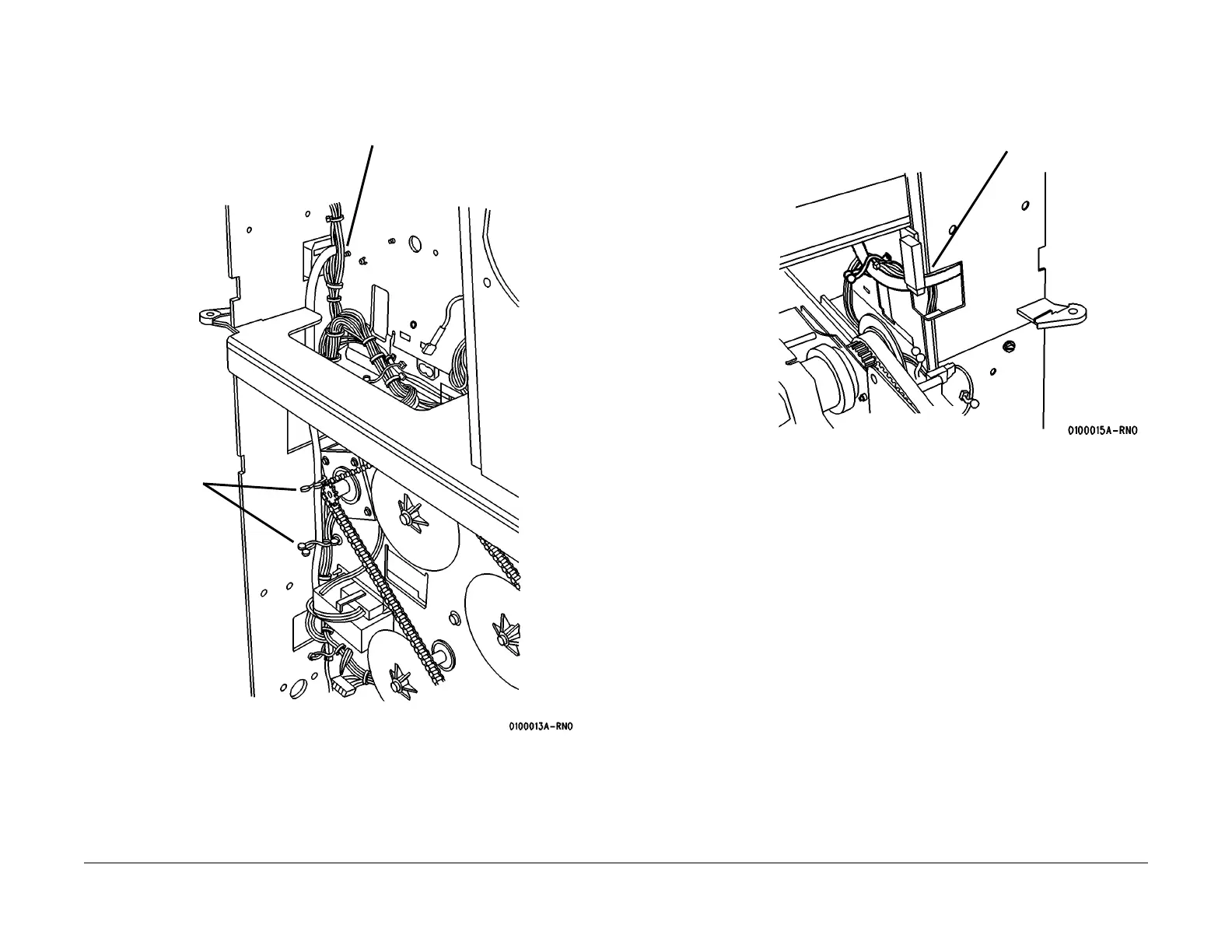

10. (Figure 4): Release the Video Cable from the cable clamps and push it through the hole in
the frame.
Figure 4 Preparing the Video Cable for Removal
11. (Figure 5): Pull the Video Cable through the hole in the frame.
Figure 5 Pull the Video Cable through the Hole in Frame
1
Release the
Video Cable
from the cable
clamps
2
Push the Video Cable through the
hole
1
Pull the Video Cable
through the hole
