Repairs and Adjustments
3. (Figure 2): Remove the Grip Ring and Gear

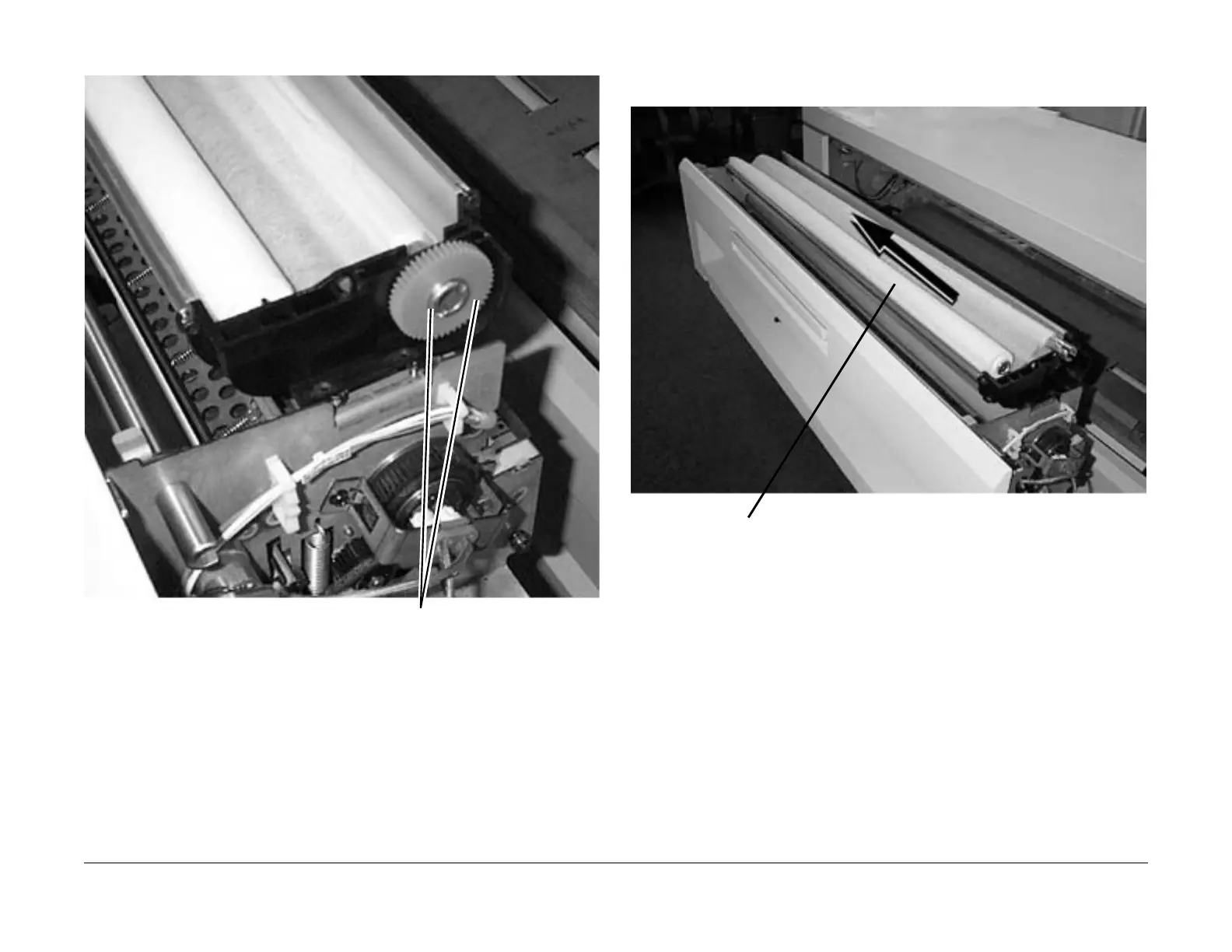

Figure 2 Removing the Takeup Roll
NOTE: Be careful not to lose the Roll Take-up Spring when removing the Web Oiler.
4. (Figure 3): Remove the Web Take up and Supply Rolls.
NOTE: It may be necessary to loosen the right side frame screws (4) to enable the
removal of the rolls from the frame
Figure 3 Removing the Web Takeup and Supply Rolls
Replacement
1. (Figure 4): Reinstall the Web Oiler.
1
Remove the Grip Ring
and Gear
1
Push the Supply Roll to
the left until the Roll
clears the Support Hub
then lift to remove
2
Push the Take-up Roll to
the left until the roll clears
the frame and lift to
remove
To Next Page
