03/2003
6-43
8850/ 510DP
Molex Connector Repair Procedure
General Procedures
3. (Figure 3):Remove the terminal from the connector.

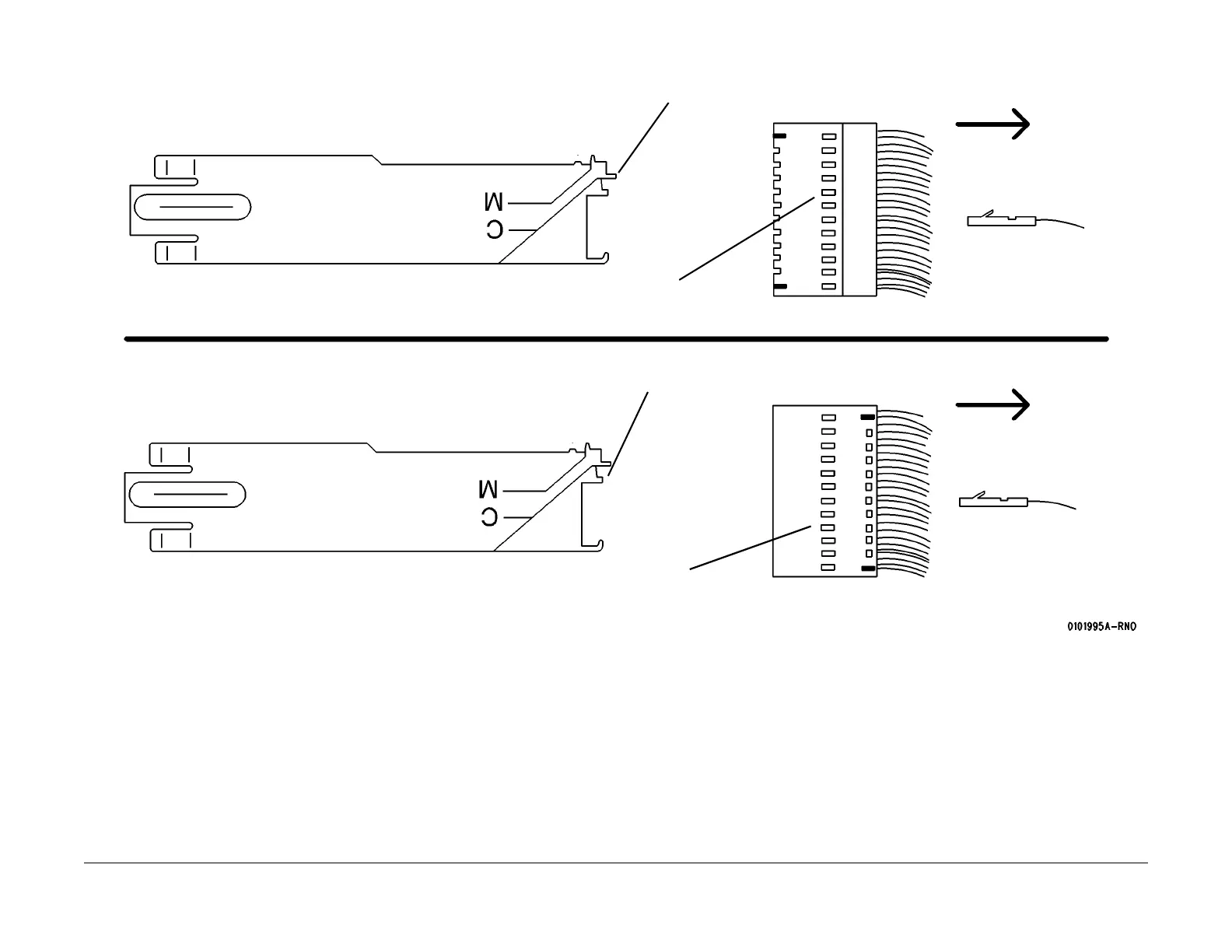

Figure 3 Removing the Terminal from the Connector
1
Insert the long Extractor Tab through the window in the housing
Long Extractor Tab (working edge of tool)
Short Extractor Tab (working edge of tool)
2
Remove the terminal from the housing
(Terminal shown rotated 90
degrees)
(Terminal shown rotated 90
degrees)
Terminal removal through the housing
Terminal removal through the connector
2
Remove the terminal
1
Insert the short Extractor Tab through the window in the module connector
To Next Page
