ColorQube 8570/8870 Service Manual
REP 5.6
Repairs and Adjustments
Xerox Internal Use Only - Revised, 3rd Revision
9. Remove the 4 screws (metal, T-9) (2 on the left side, 1 on the top side, and 1 on the front
side).

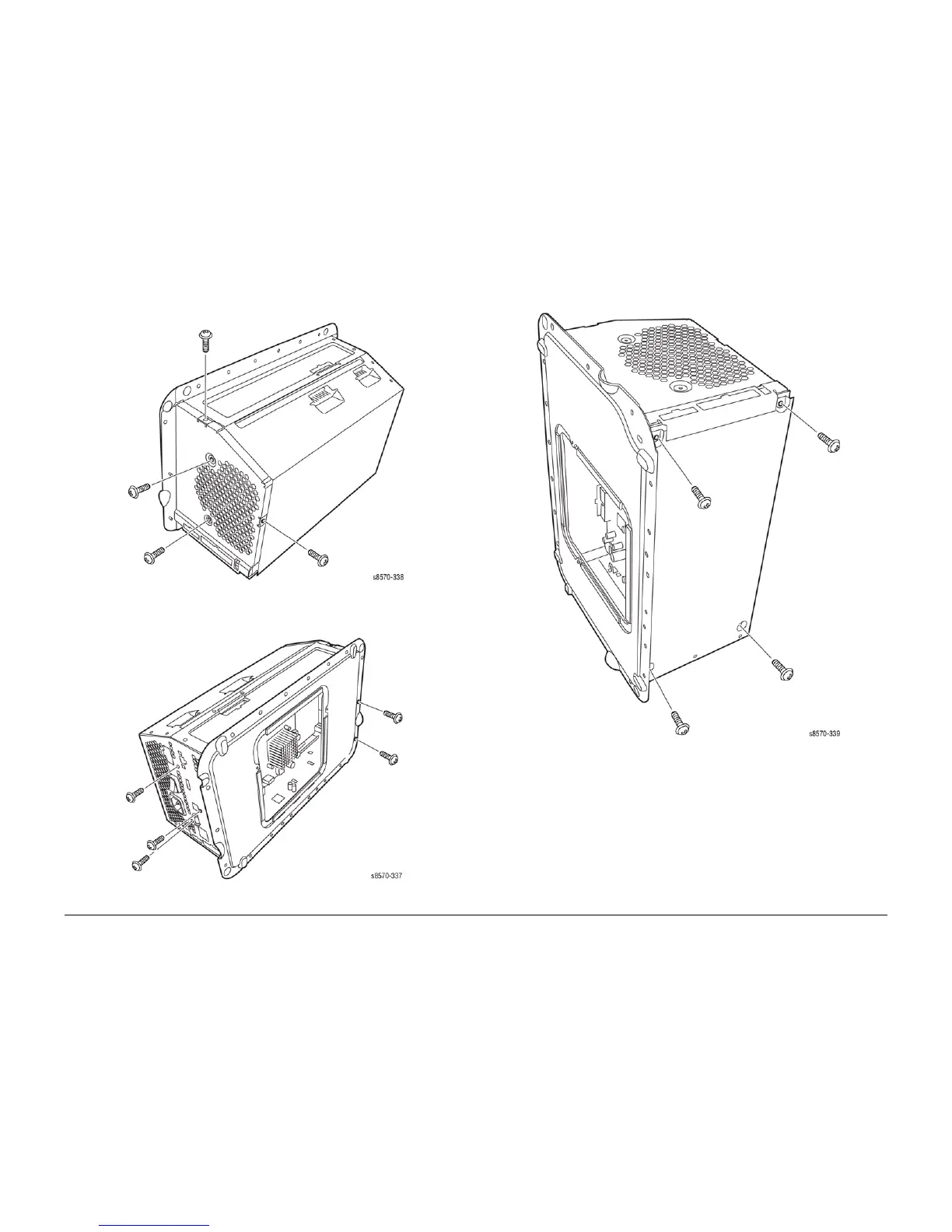

Figure 2 Removing the Screws
10. Remove 5 screws (metal, T-9) (3 on the right side and 2 on the rear side).
Figure 3 Removing the Screws
11. Remove 4 screws (metal, T-9) from the bottom side.
Figure 4 Removing the Screws
