ColorQube 8570/8870 Service Manual
REP 5.6
Revised, 3rd Revision - Xerox Internal Use Only
Repairs and Adjustments
12. Lift and remove the Left Panel from the Electronics Module.

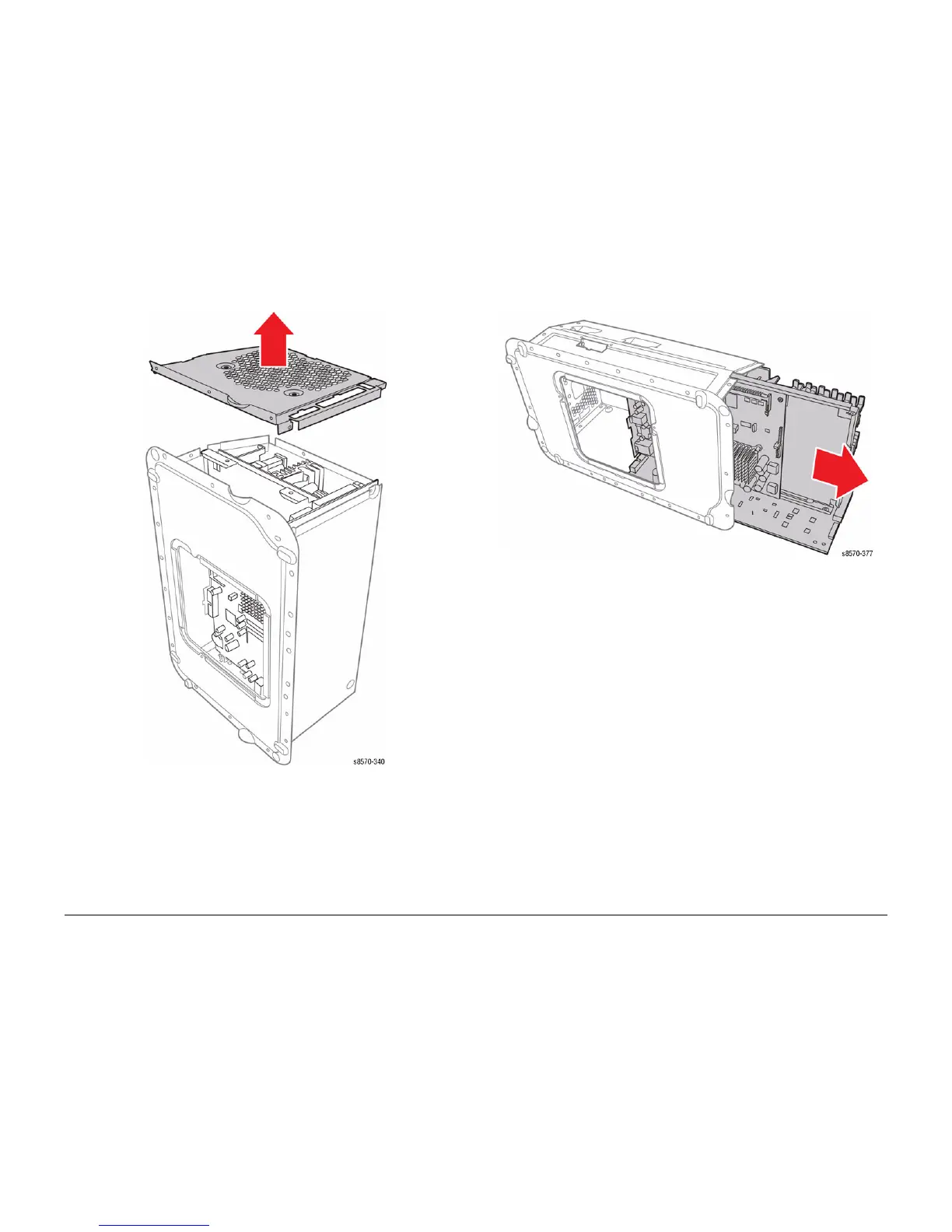

Figure 5 Removing the Left Panel
13. Slide the Board Assembly out from the Electronics Module Cage.
Figure 6 Removing the Board Assembly Module
