ColorQube 8570/8870 Service Manual
Plug/Jack Locations
Wiring Data
Xerox Internal Use Only - Revised, 3rd Revision
Power Supply

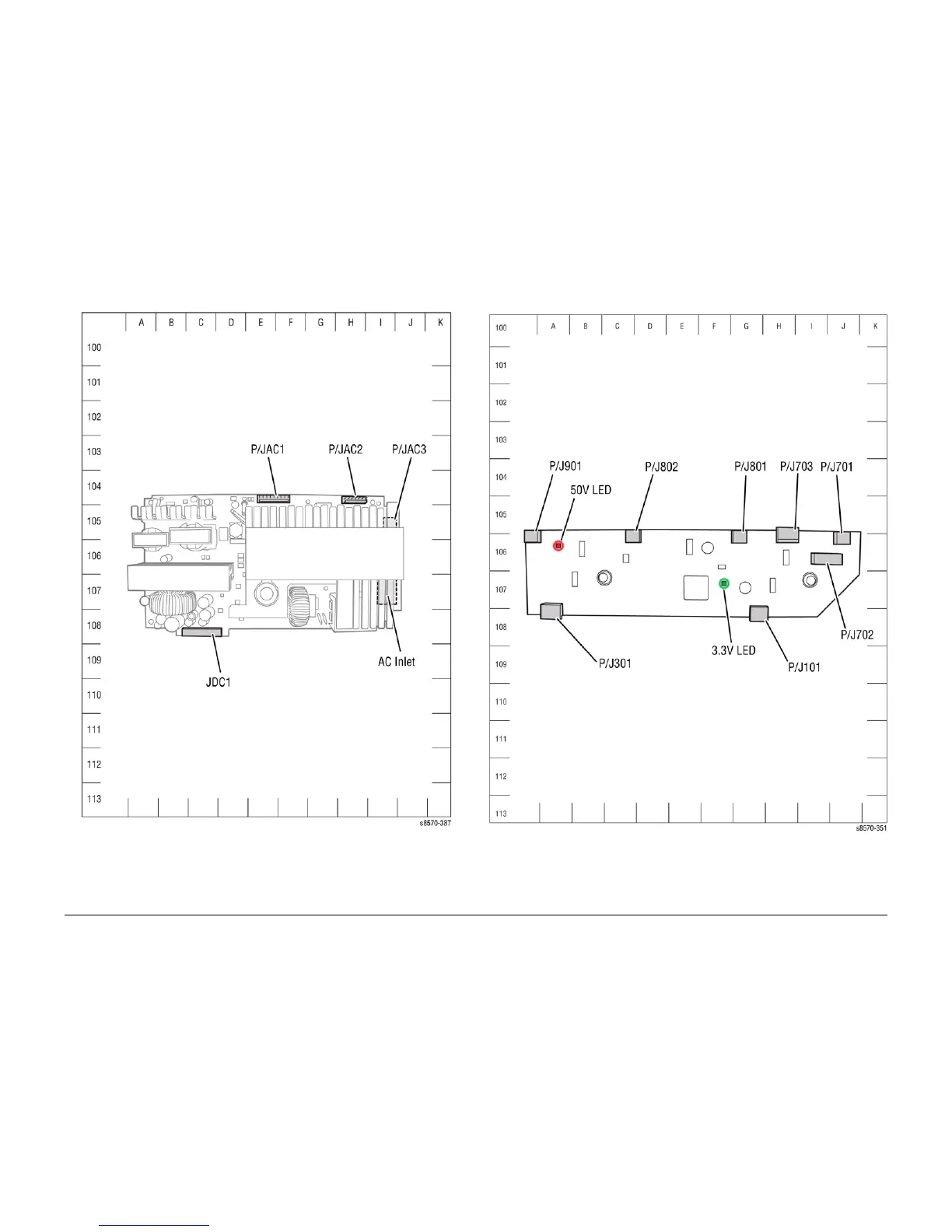

Figure 10 Power Supply P/J Locations
Ink Loader Board
Figure 11 Ink Loader Board P/J Locations
