ColorQube 8570/8870 Service Manual
Plug/Jack Locations
Revised, 3rd Revision - Xerox Internal Use Only
Wiring Data
Ink Loader Thermistor

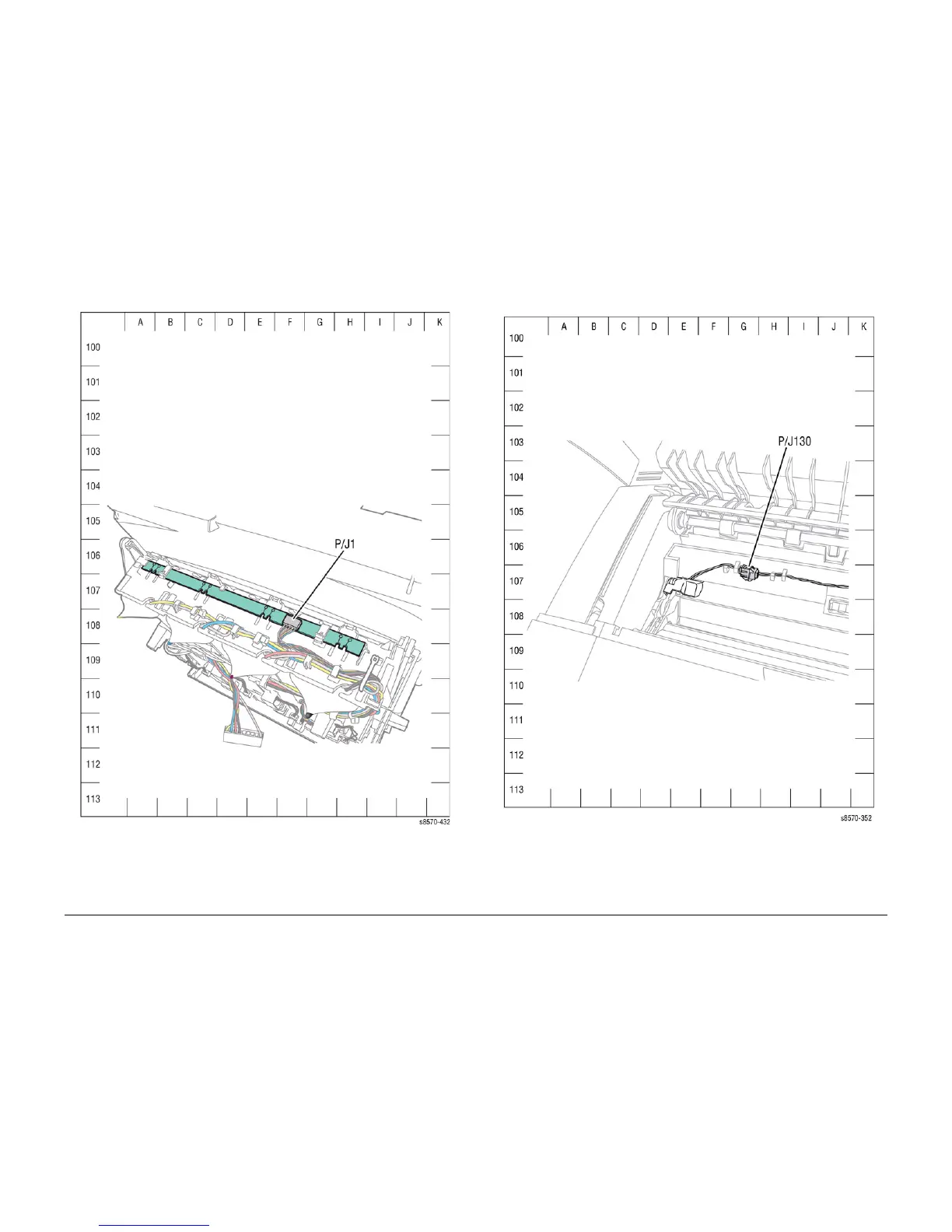

Figure 12 Ink Loader Thermistor P/J Location
Drum Temperature Sensor
Figure 13 Drum Temperature Sensor P/J Location
