FRU Disassembly 8-45
2. Remove the three screws (one silver tapping with flange, 8 mm; two gold
tapping, 8 mm) that attach the Front Duct.
3. Unplug the Sub Fan harness from the LVPS Harness Assembly at connector
P/J270.
4. Release the gray wires from the Cable Slot.
5. Remove the Front Duct (with the Sub Fan attached) from the frame by moving it
in the direction of the arrow.
6. Release the hook that secures the Sub Fan to the Front Duct, and remove the Sub
Fan.

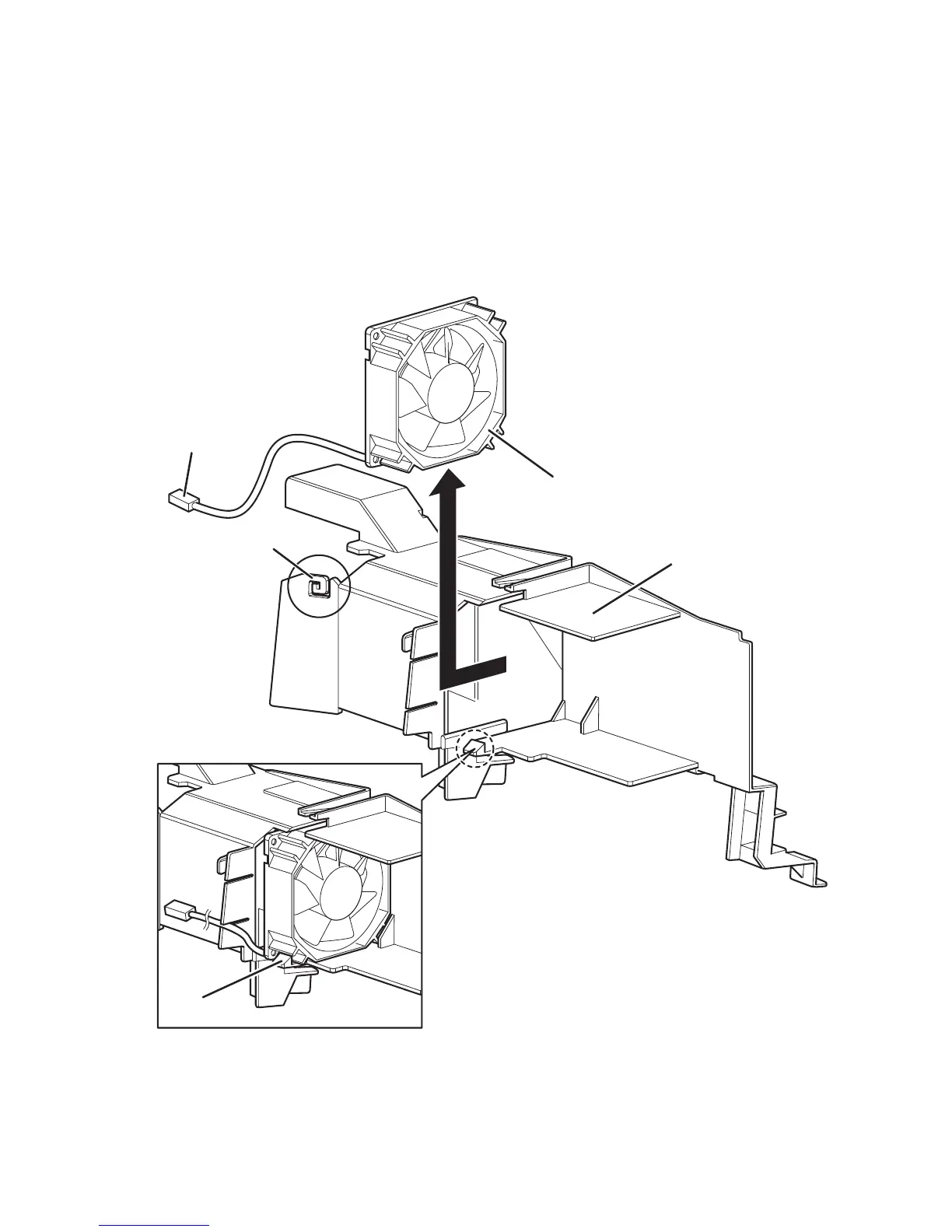

1. Sub Fan 3. Latch
2. Front Duct 4. Cable Slot
s4500-113
1
2
3
4
P/J 270
To Next Page
