2-4 Phaser 4500 Service Manual

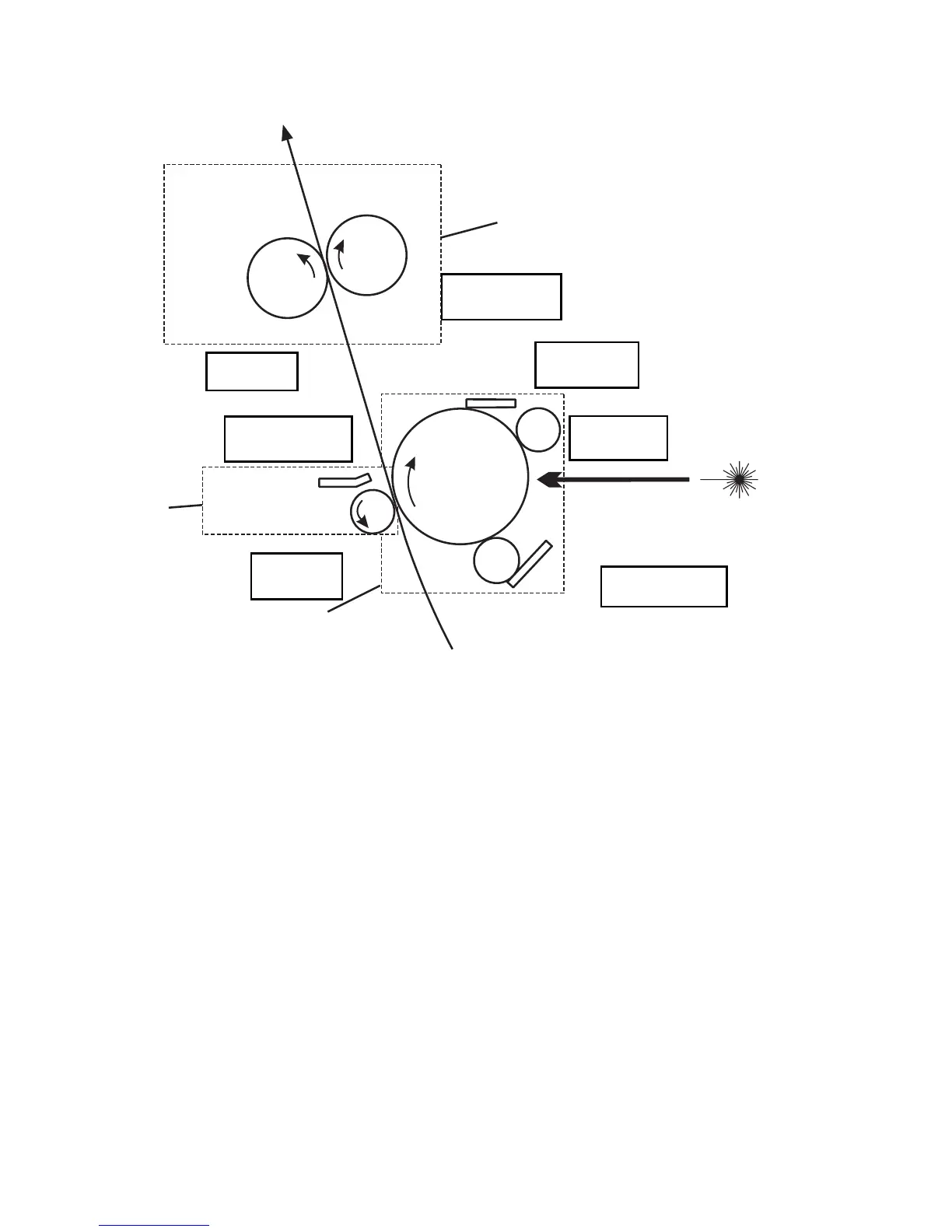

This cut-away side view of the Phaser 4500 printer shows the location of individual
components within the printer, and the major components that are directly related to
the print cycle and to the paper path.
Components Associated with the Xerographic Process
Fuser Assembly
Print Cartridge
Paper
Transport
Laser Beam
Magnetic Roller
Charge Metering Blade
Cleaning
Blade
Detack Saw
Paper
Drum
BCR
Pressure
Roller
Heat Roller
s4500-008
Transfer Roller
1. Charging
3. Development
5. Transfer
6. Discharge
7. Fusing
2. Exposure
8. Cleaning
