Xerox PHASER 6121MFP User Manual

Troubleshooting
Phaser 6121MFP Multifunction Printer
User Guide
195

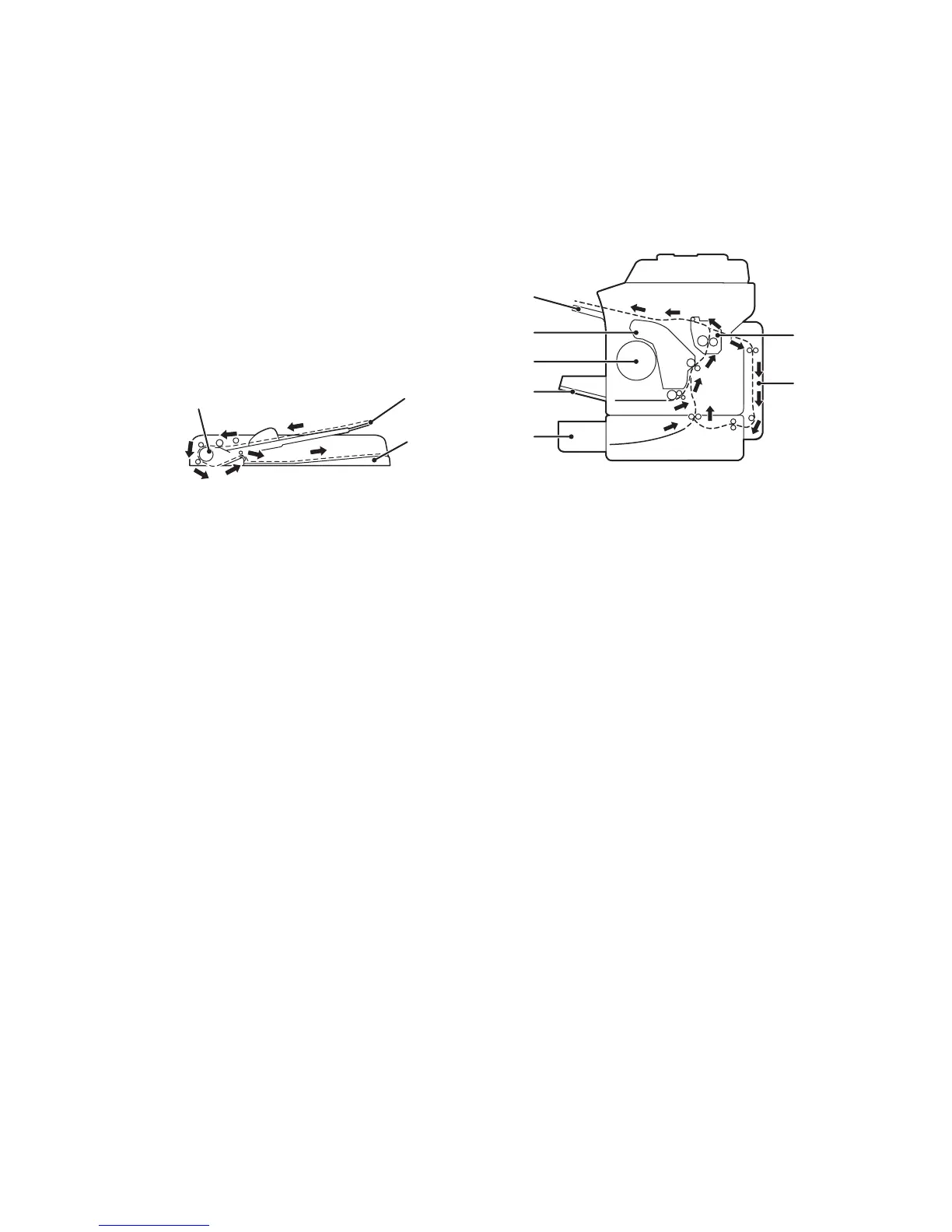

Understanding the Media Path
Understanding the path that paper and other media take through the parts of the printer will help you
locate misfed media.
1. Auto document feeder media feed rollers 4. Output tray
2. Document feed tray 5. Imaging unit
3. Document output tray 6. Toner cartridge carousel
7. Tray 1
8. 500-sheet feeder and lower feed unit
9. Fuser
10. Duplex unit (Phaser 6121MFP/D printer
configuration only)
6121-195
1
2
3
6121-193
5
9
10
4
8
6
7

Xerox PHASER 6121MFP Specifications

General

Print technology	Laser
Maximum resolution	1200 x 600 DPI
Economical printing	Yes
Time to first page (black, normal)	11 s
Time to first page (color, normal)	21 s
Print speed (black, normal quality, A4/US Letter)	20 ppm
Print speed (color, normal quality, A4/US Letter)	5 ppm
Power supply type	AC
Dimensions (WxDxH)	405 x 427 x 375 mm
Printer management	MFP ControlCentre, Xerox CentreWare Internet Services, Xerox CentreWare Web
All-in-one functions	Copy, Scan
Standard media sizes	92 x 184mm - 216 x 356mm
Maximum internal memory	0.128 GB
Color all-in-one functions	copy, print, scan
Compatible operating systems	Windows 2000/XP/Vista Mac OS X v10.3+
Scanner type	Flatbed scanner
Image formats supported	JPG
Maximum scan resolution	4800 x 4800 DPI
Copier resize	- %
Maximum copy resolution	600 x 600 DPI
Time to first copy (black, normal)	19 s
Time to first copy (color, normal)	45 s
Total input capacity	200 sheets
Total output capacity	100 sheets
Internal memory	128 MB
Card reader integrated	No
Sound pressure level (printing)	- dB
Display	LCD
Market positioning	Business
Maximum print size	216 x 356 mm
Paper tray media types	Bond paper, Card stock, Labels, Plain paper, Recycled paper
Non-ISO print media sizes	Executive (184 x 267mm), Folio (media size), Legal (media size), Letter (media size), Oficio (media size), Statement (140 x 216mm)
ISO A-series sizes (A0...A9)	A4, A5
JIS B-series sizes (B0...B9)	B5
Maximum ISO A-series paper size	A4
Multi-Purpose Tray media weight	60 - 209 g/m²
Standard interfaces	USB 2.0
Power consumption (standby)	76 W
Power consumption (average operating)	271 W
Sustainability certificates	ENERGY STAR
Certification	EMC, FCC
Maximum duty cycle	35000 pages per month
Recommended duty cycle	1500 pages per month
Operating temperature (T-T)	10 - 35 °C
Non-operating relative humidity (non-condensing)	15 - 85 %
