Troubleshooting
Phaser 6121MFP Multifunction Printer
User Guide
196
Clearing Paper Jams
This section includes:
• Clearing Jams at the Fuser (Inside the Printer) on page 196
• Clearing Jams at Tray 1 on page 199
• Clearing Jams at the Auto Document Feeder on page 200
• Clearing Jams at the 500-Sheet Feeder on page 201
• Clearing Jams at the Duplex Unit on page 202
Caution: To avoid damage, always remove misfed media gently, without tearing it. Any piece of
media left in the printer, whether large or small, can obstruct the media path and cause further
misfeeds. Do not reload media that has misfed.
Caution: The image is not fixed on the media before the fusing process. If you touch the printed
surface, the toner may stick to your hands, so be careful not to touch the printed face when
removing the misfed media. Make sure not to spill any toner inside the printer.
Warning: Unused toner can mess your hands, clothes, or anything else it gets on. If you
accidentally get toner on your clothes, lightly dust them off as best as you can. If some toner
remains on your clothes, use cool, not hot, water to rinse the toner off. If toner gets on your skin,
wash it off with cool water and a mild soap.
Warning: If you get toner in your eyes, wash it out immediately with cool water and then consult a
doctor.
Note: If, after clearing the media misfeed, the misfeed message in the message window persists,
open and close the printer top. This should clear the misfeed message.
Clearing Jams at the Fuser (Inside the Printer)

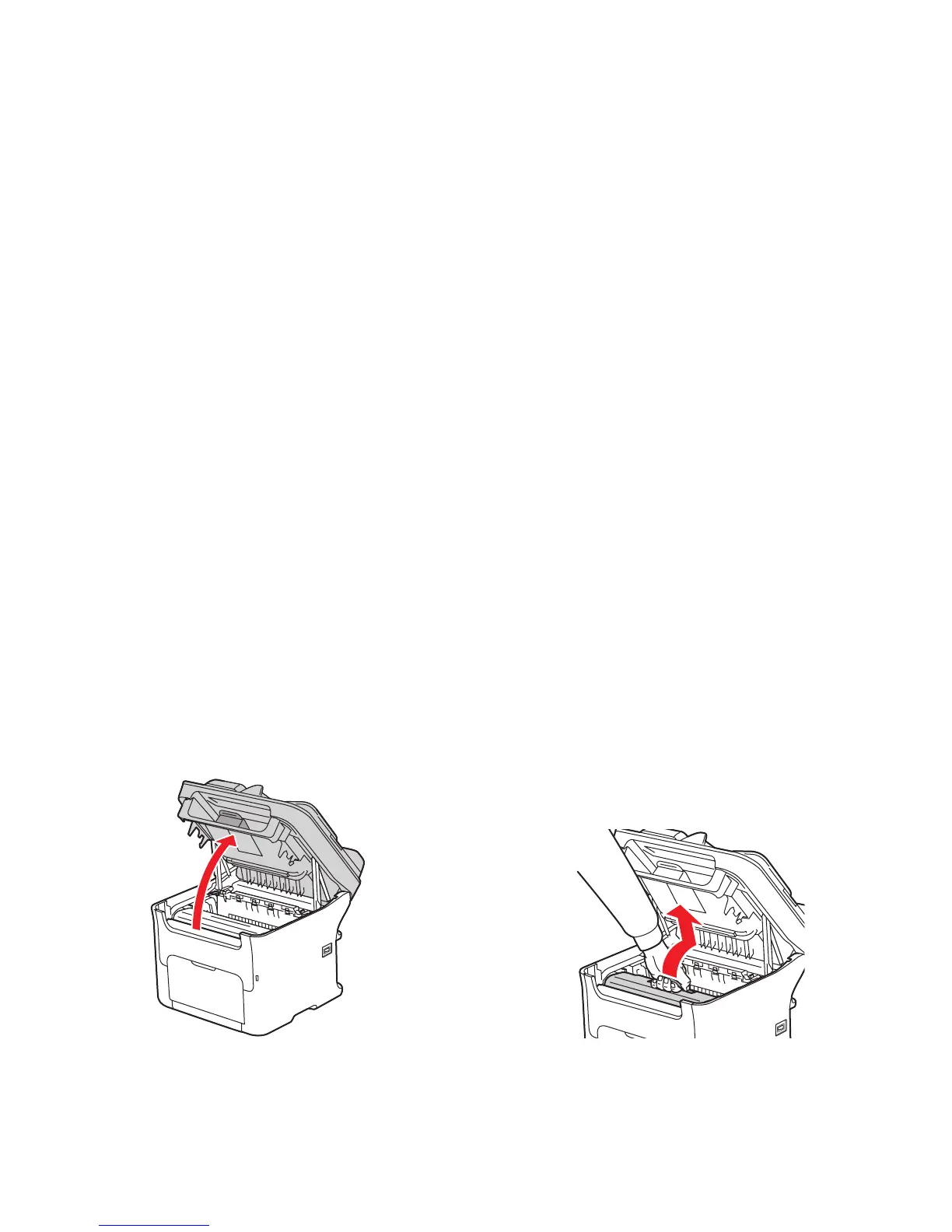

1. Open the printer top (see picture below left). If there is paper in the output tray, remove it, then
fold up the output tray before opening the printer top.
6121-022
6121-040

Xerox PHASER 6121MFP Specifications

General

Print technology	Laser
Maximum resolution	1200 x 600 DPI
Economical printing	Yes
Time to first page (black, normal)	11 s
Time to first page (color, normal)	21 s
Print speed (black, normal quality, A4/US Letter)	20 ppm
Print speed (color, normal quality, A4/US Letter)	5 ppm
Power supply type	AC
Dimensions (WxDxH)	405 x 427 x 375 mm
Printer management	MFP ControlCentre, Xerox CentreWare Internet Services, Xerox CentreWare Web
All-in-one functions	Copy, Scan
Standard media sizes	92 x 184mm - 216 x 356mm
Maximum internal memory	0.128 GB
Color all-in-one functions	copy, print, scan
Compatible operating systems	Windows 2000/XP/Vista Mac OS X v10.3+
Scanner type	Flatbed scanner
Image formats supported	JPG
Maximum scan resolution	4800 x 4800 DPI
Copier resize	- %
Maximum copy resolution	600 x 600 DPI
Time to first copy (black, normal)	19 s
Time to first copy (color, normal)	45 s
Total input capacity	200 sheets
Total output capacity	100 sheets
Internal memory	128 MB
Card reader integrated	No
Sound pressure level (printing)	- dB
Display	LCD
Market positioning	Business
Maximum print size	216 x 356 mm
Paper tray media types	Bond paper, Card stock, Labels, Plain paper, Recycled paper
Non-ISO print media sizes	Executive (184 x 267mm), Folio (media size), Legal (media size), Letter (media size), Oficio (media size), Statement (140 x 216mm)
ISO A-series sizes (A0...A9)	A4, A5
JIS B-series sizes (B0...B9)	B5
Maximum ISO A-series paper size	A4
Multi-Purpose Tray media weight	60 - 209 g/m²
Standard interfaces	USB 2.0
Power consumption (standby)	76 W
Power consumption (average operating)	271 W
Sustainability certificates	ENERGY STAR
Certification	EMC, FCC
Maximum duty cycle	35000 pages per month
Recommended duty cycle	1500 pages per month
Operating temperature (T-T)	10 - 35 °C
Non-operating relative humidity (non-condensing)	15 - 85 %
