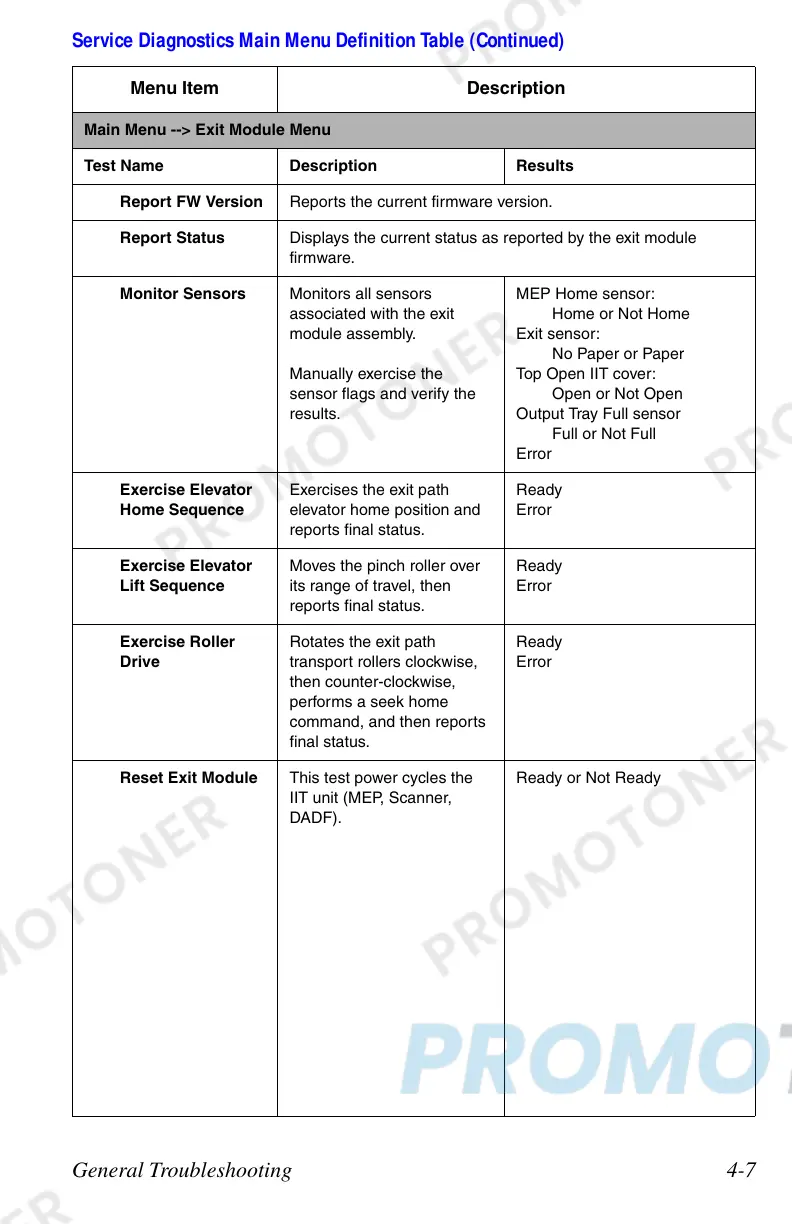

Main Menu --> Exit Module Menu
Test Name Description Results
Report FW Version Reports the current firmware version.
Report Status Displays the current status as reported by the exit module
firmware.
Monitor Sensors Monitors all sensors
associated with the exit
module assembly.
Manually exercise the
sensor flags and verify the
results.
MEP Home sensor:
Home or Not Home
Exit sensor:
No Paper or Paper
Top Open IIT cover:
Open or Not Open
Output Tray Full sensor
Full or Not Full
Error
Exercise Elevator
Home Sequence
Exercises the exit path
elevator home position and
reports final status.
Ready
Error
Exercise Elevator
Lift Sequence
Moves the pinch roller over
its range of travel, then
reports final status.
Ready
Error
Exercise Roller
Drive
Rotates the exit path
transport rollers clockwise,
then counter-clockwise,
performs a seek home
command, and then reports
final status.
Ready
Error
Reset Exit Module This test power cycles the
IIT unit (MEP, Scanner,
DADF).
Ready or Not Ready
