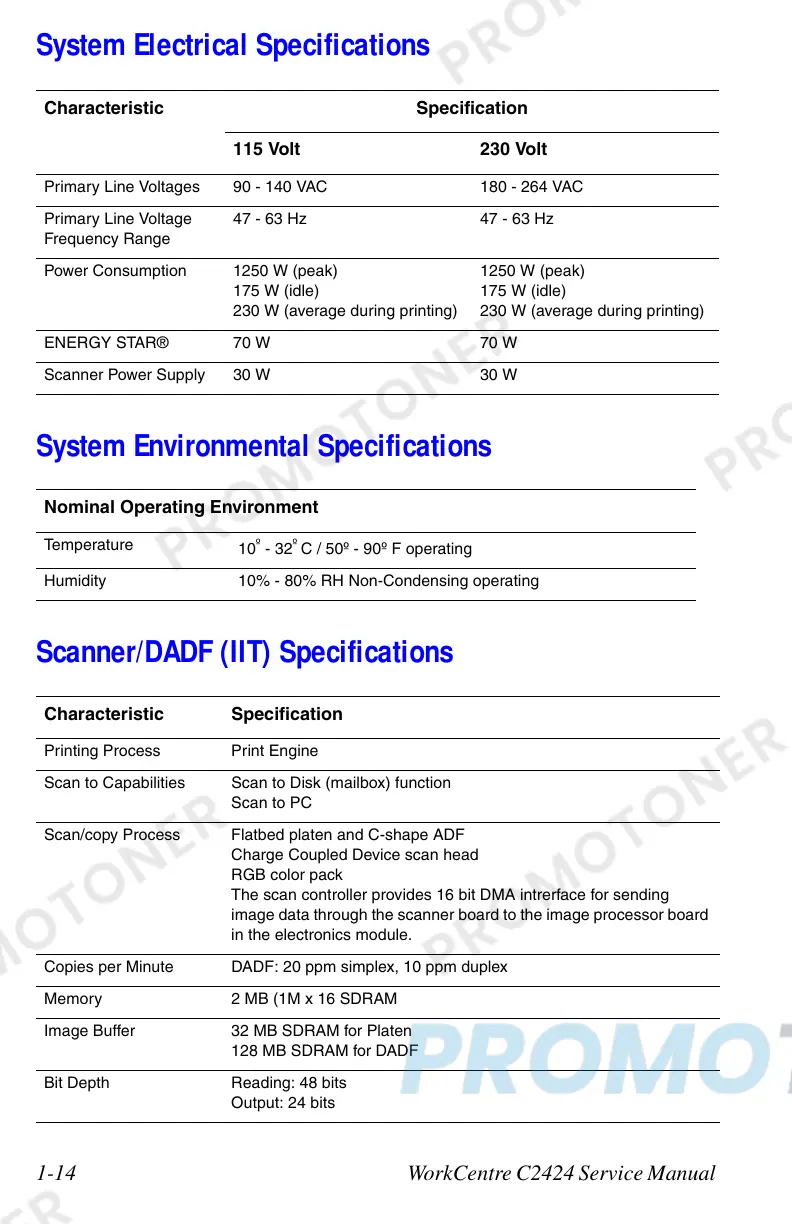

1-14 WorkCentre C2424 Service Manual
System Electrical Specifications
System Environmental Specifications
Scanner/DADF (IIT) Specifications
Characteristic Specification
115 Volt 230 Volt
Primary Line Voltages 90 - 140 VAC 180 - 264 VAC
Primary Line Voltage
Frequency Range
47 - 63 Hz 47 - 63 Hz
Power Consumption 1250 W (peak)
175 W (idle)
230 W (average during printing)
1250 W (peak)
175 W (idle)
230 W (average during printing)
ENERGY STAR® 70 W 70 W
Scanner Power Supply 30 W 30 W
Nominal Operating Environment
Temperature
10
º
- 32
º
C / 50º - 90º F operating
Humidity 10% - 80% RH Non-Condensing operating
Characteristic Specification
Printing Process Print Engine
Scan to Capabilities Scan to Disk (mailbox) function
Scan to PC
Scan/copy Process Flatbed platen and C-shape ADF
Charge Coupled Device scan head
RGB color pack
The scan controller provides 16 bit DMA intrerface for sending
image data through the scanner board to the image processor board
in the electronics module.
Copies per Minute DADF: 20 ppm simplex, 10 ppm duplex
Memory 2 MB (1M x 16 SDRAM
Image Buffer 32 MB SDRAM for Platen
128 MB SDRAM for DADF
Bit Depth Reading: 48 bits
Output: 24 bits
