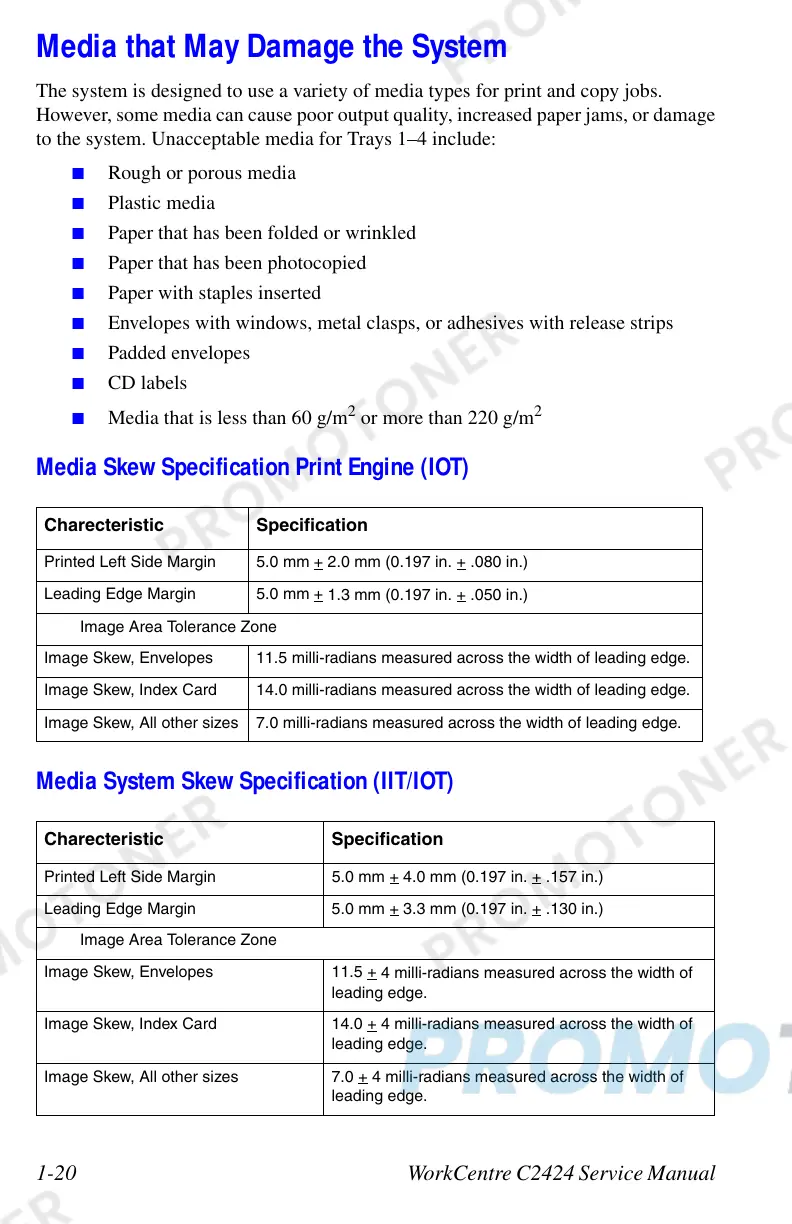

Media that May Damage the System
The system is designed to use a variety of media types for print and copy jobs.
However, some media can cause poor output quality, increased paper jams, or damage
to the system. Unacceptable media for Trays 1–4 include:
■ Rough or porous media
■ Plastic media
■ Paper that has been folded or wrinkled
■ Paper that has been photocopied
■ Paper with staples inserted
■ Envelopes with windows, metal clasps, or adhesives with release strips
■ Padded envelopes
■ CD labels
■ Media that is less than 60 g/m
2
or more than 220 g/m
2
Media Skew Specification Print Engine (IOT)
Media System Skew Specification (IIT/IOT)
Charecteristic Specification
Printed Left Side Margin 5.0 mm + 2.0 mm (0.197 in. + .080 in.)
Leading Edge Margin 5.0 mm +
1.3 mm (0.197 in. + .050 in.)
Image Area Tolerance Zone
Image Skew, Envelopes 11.5 milli-radians measured across the width of leading edge.
Image Skew, Index Card 14.0 milli-radians measured across the width of leading edge.
Image Skew, All other sizes 7.0 milli-radians measured across the width of leading edge.
Charecteristic Specification
Printed Left Side Margin 5.0 mm + 4.0 mm (0.197 in. + .157 in.)
Leading Edge Margin 5.0 mm +
3.3 mm (0.197 in. + .130 in.)
Image Area Tolerance Zone
Image Skew, Envelopes 11.5 +
4 milli-radians measured across the width of
leading edge.
Image Skew, Index Card 14.0 +
4 milli-radians measured across the width of
leading edge.
Image Skew, All other sizes 7.0 +
4 milli-radians measured across the width of
leading edge.
