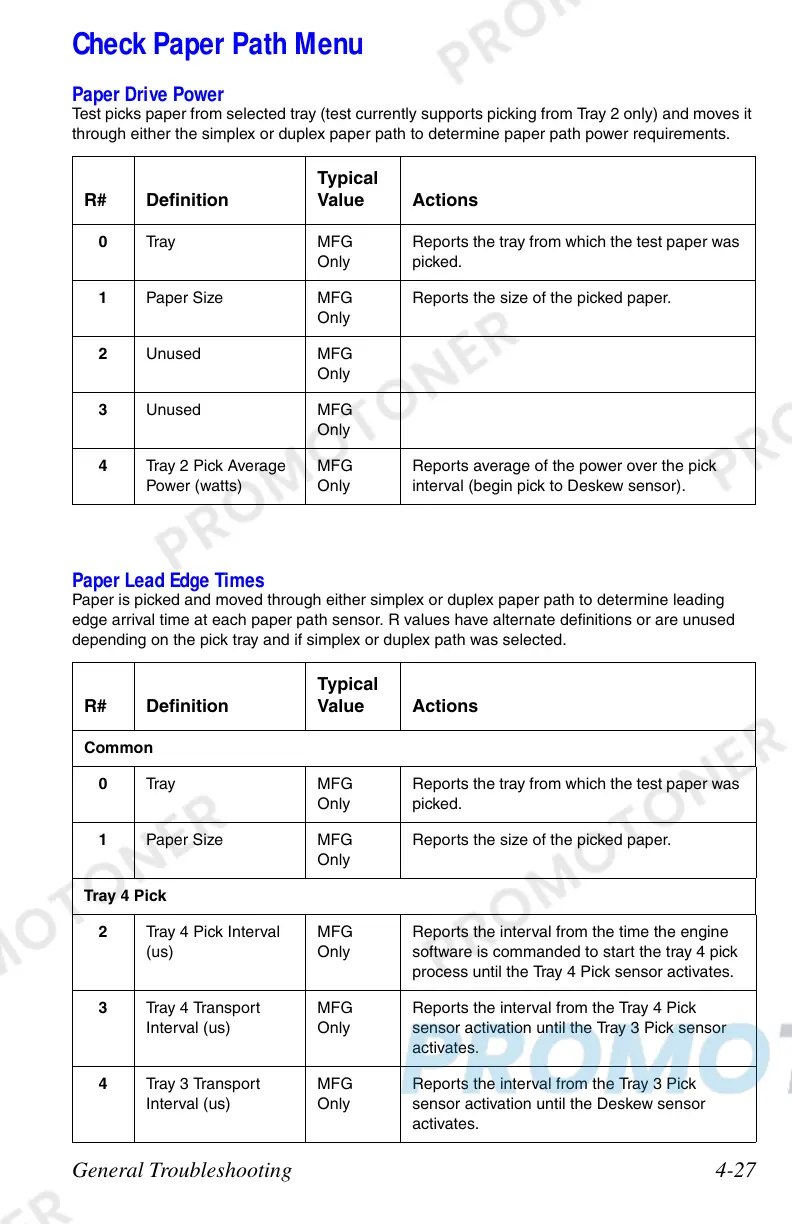

Check Paper Path Menu
Paper Drive Power
Test picks paper from selected tray (test currently supports picking from Tray 2 only) and moves it
through either the simplex or duplex paper path to determine paper path power requirements.
R# Definition
Typical
Value Actions
0 Tray MF G
Only
Reports the tray from which the test paper was
picked.
1 Paper Size MFG
Only
Reports the size of the picked paper.
2 Unused MFG
Only
3 Unused MFG
Only
4 Tray 2 Pick Average
Power (watts)
MFG
Only
Reports average of the power over the pick
interval (begin pick to Deskew sensor).
Paper Lead Edge Times
Paper is picked and moved through either simplex or duplex paper path to determine leading
edge arrival time at each paper path sensor. R values have alternate definitions or are unused
depending on the pick tray and if simplex or duplex path was selected.
R# Definition
Typical
Value Actions
Common
0 Tray MF G
Only
Reports the tray from which the test paper was
picked.
1 Paper Size MFG
Only
Reports the size of the picked paper.
Tray 4 Pick
2 Tray 4 Pick Interval
(us)
MFG
Only
Reports the interval from the time the engine
software is commanded to start the tray 4 pick
process until the Tray 4 Pick sensor activates.
3 Tray 4 Transport
Interval (us)
MFG
Only
Reports the interval from the Tray 4 Pick
sensor activation until the Tray 3 Pick sensor
activates.
4 Tray 3 Transport
Interval (us)
MFG
Only
Reports the interval from the Tray 3 Pick
sensor activation until the Deskew sensor
activates.
