10-8 WorkCentre C2424 Service Manual

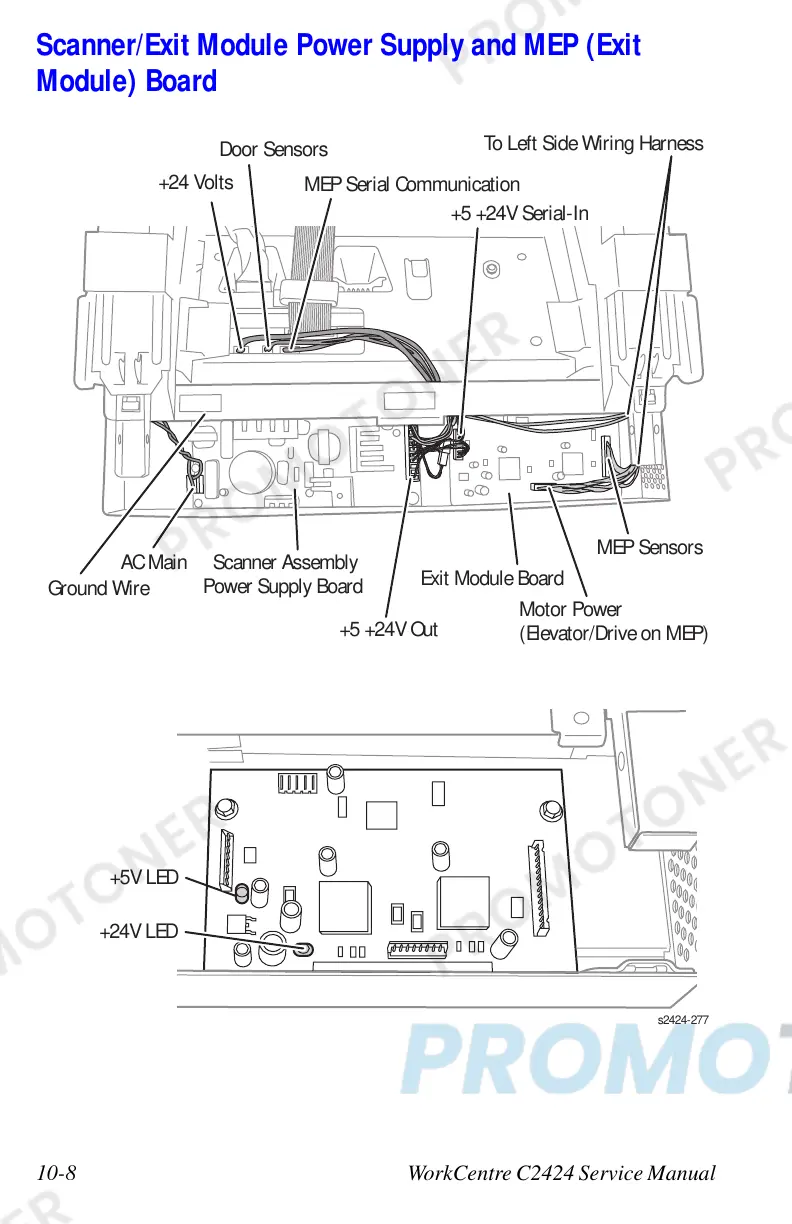

Scanner/Exit Module Power Supply and MEP (Exit

Module) Board

s2424-277

Exit Module Board

Scanner Assembly

Power Supply Board

MEP Serial Communication

+5 +24V Serial-In

Door Sensors

+24 Volts

Motor Power

(Elevator/Drive on ME

MEP Sensor

AC Main

round Wire

+5 +24V Out

+5V LED

+24V LED

To Left Side Wiring Harness
