8-10 WorkCentre C2424 Service Manual

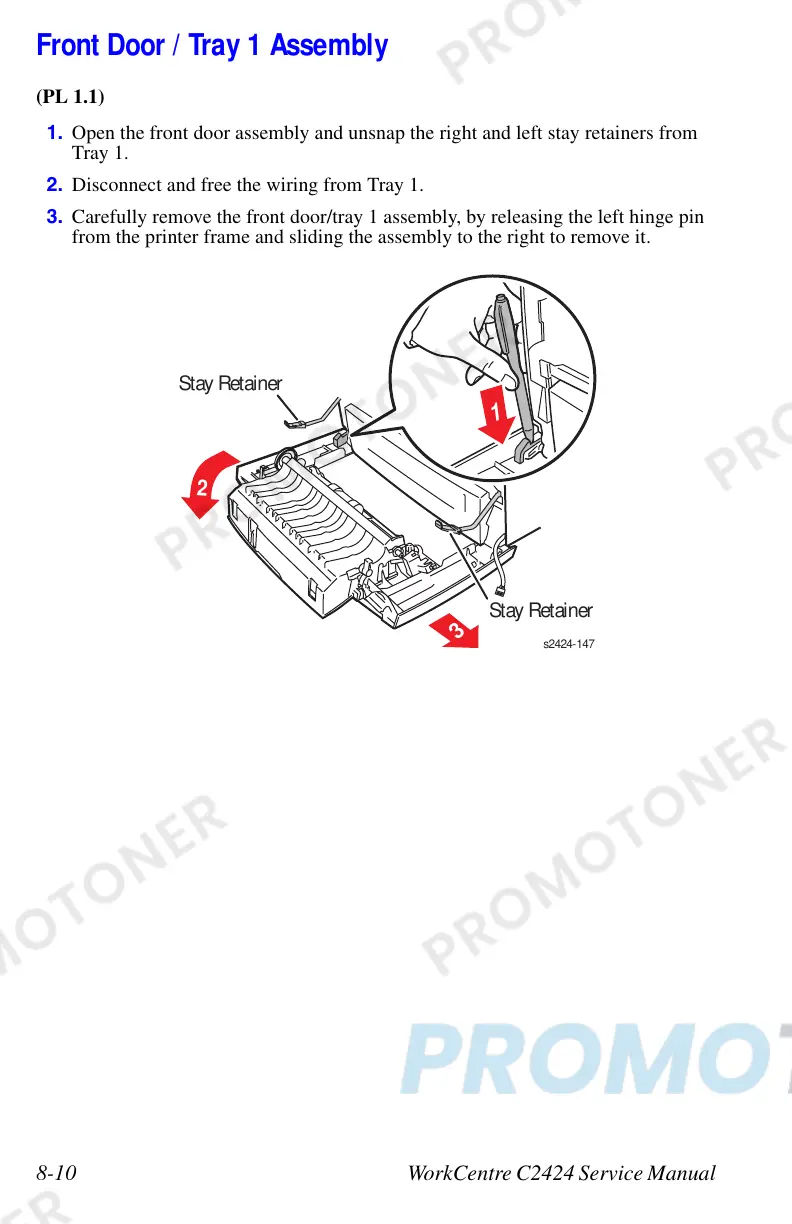

Front Door / Tray 1 Assembly

(PL 1.1)

1. Open the front door assembly and unsnap the right and left stay retainers from

Tray 1.

2. Disconnect and free the wiring from Tray 1.

3. Carefully remove the front door/tray 1 assembly, by releasing the left hinge pin

from the printer frame and sliding the assembly to the right to remove it.

s2424-14

Stay Retaine

tay Retainer
