6-4 WorkCentre C2424 Service Manual

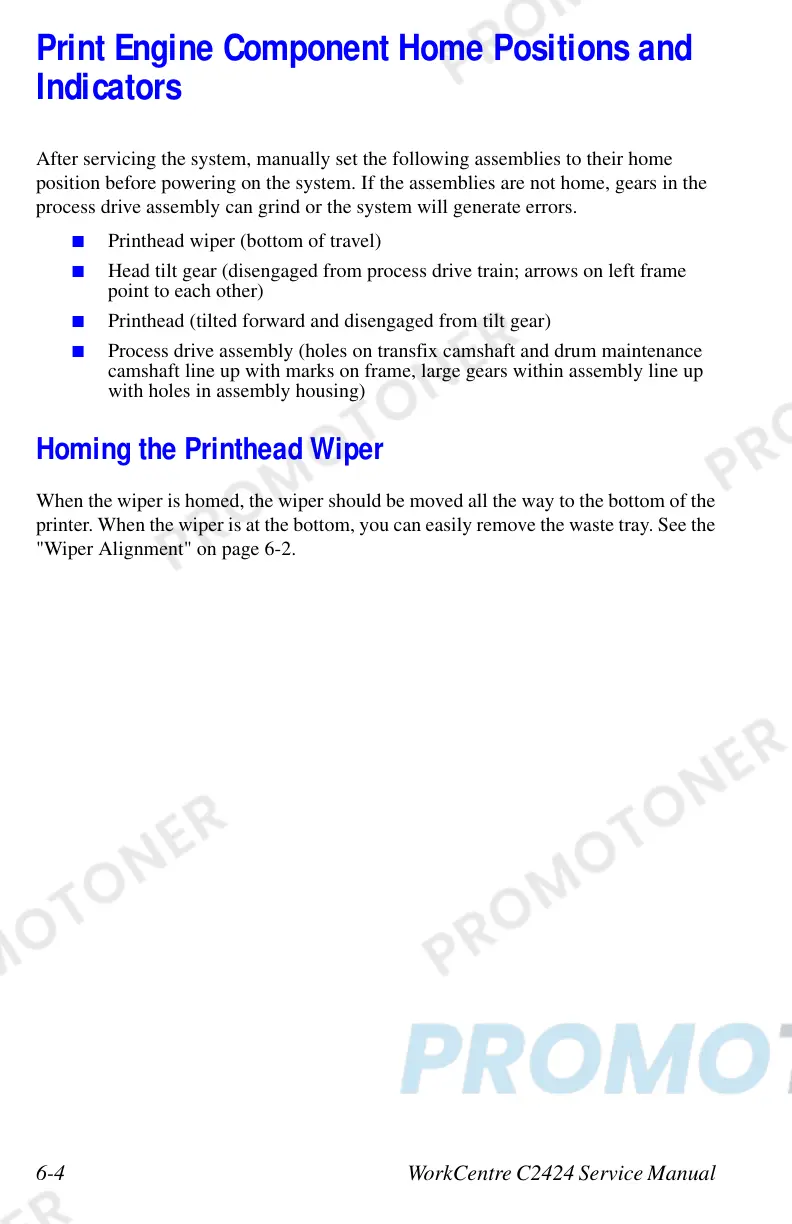

Print Engine Component Home Positions and
Indicators
After servicing the system, manually set the following assemblies to their home
position before powering on the system. If the assemblies are not home, gears in the
process drive assembly can grind or the system will generate errors.
■ Printhead wiper (bottom of travel)
■ Head tilt gear (disengaged from process drive train; arrows on left frame
point to each other)
■ Printhead (tilted forward and disengaged from tilt gear)
■ Process drive assembly (holes on transfix camshaft and drum maintenance
camshaft line up with marks on frame, large gears within assembly line up
with holes in assembly housing)
Homing the Printhead Wiper
When the wiper is homed, the wiper should be moved all the way to the bottom of the
printer. When the wiper is at the bottom, you can easily remove the waste tray. See the
"Wiper Alignment" on page 6-2.
