Adjustments and Calibrations 6-3

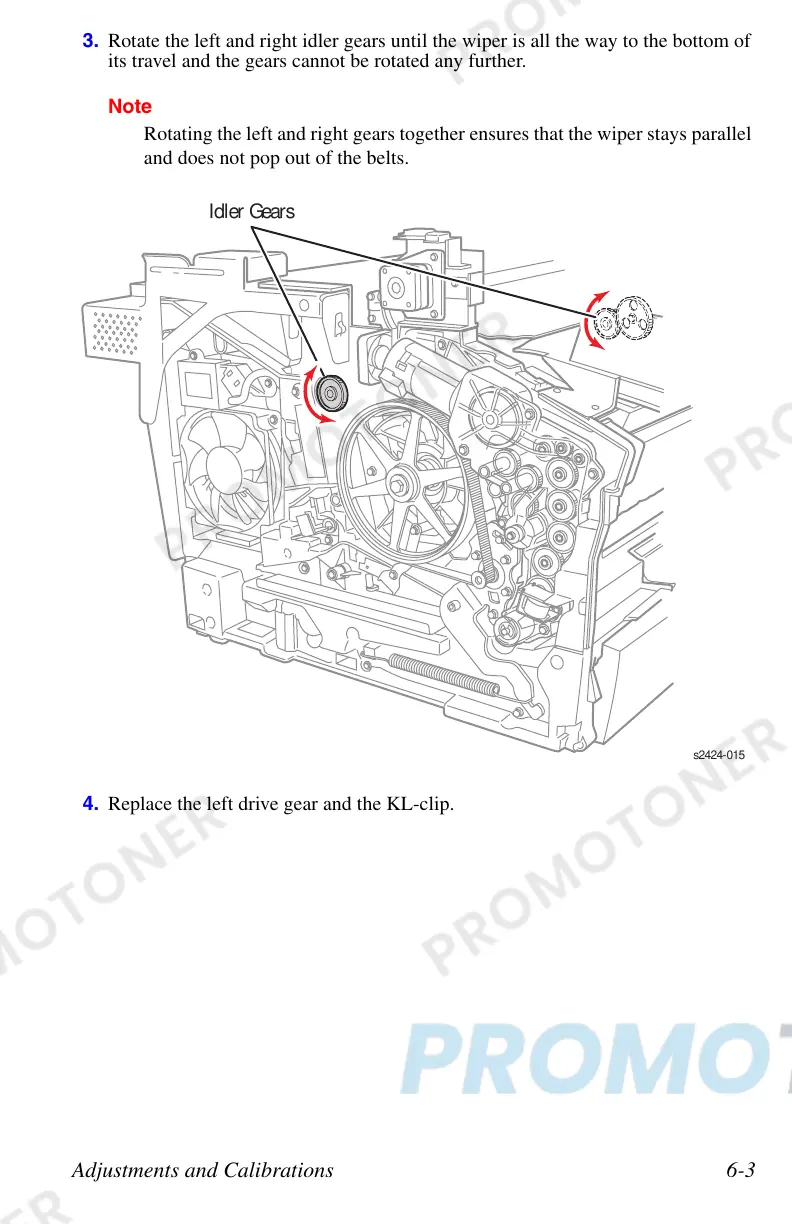

3. Rotate the left and right idler gears until the wiper is all the way to the bottom of

its travel and the gears cannot be rotated any further.

Note

Rotating the left and right gears together ensures that the wiper stays parallel

and does not pop out of the belts.

4. Replace the left drive gear and the KL-clip.

Idler Gears

s2424-0
