Service Parts Disassembly 8-67

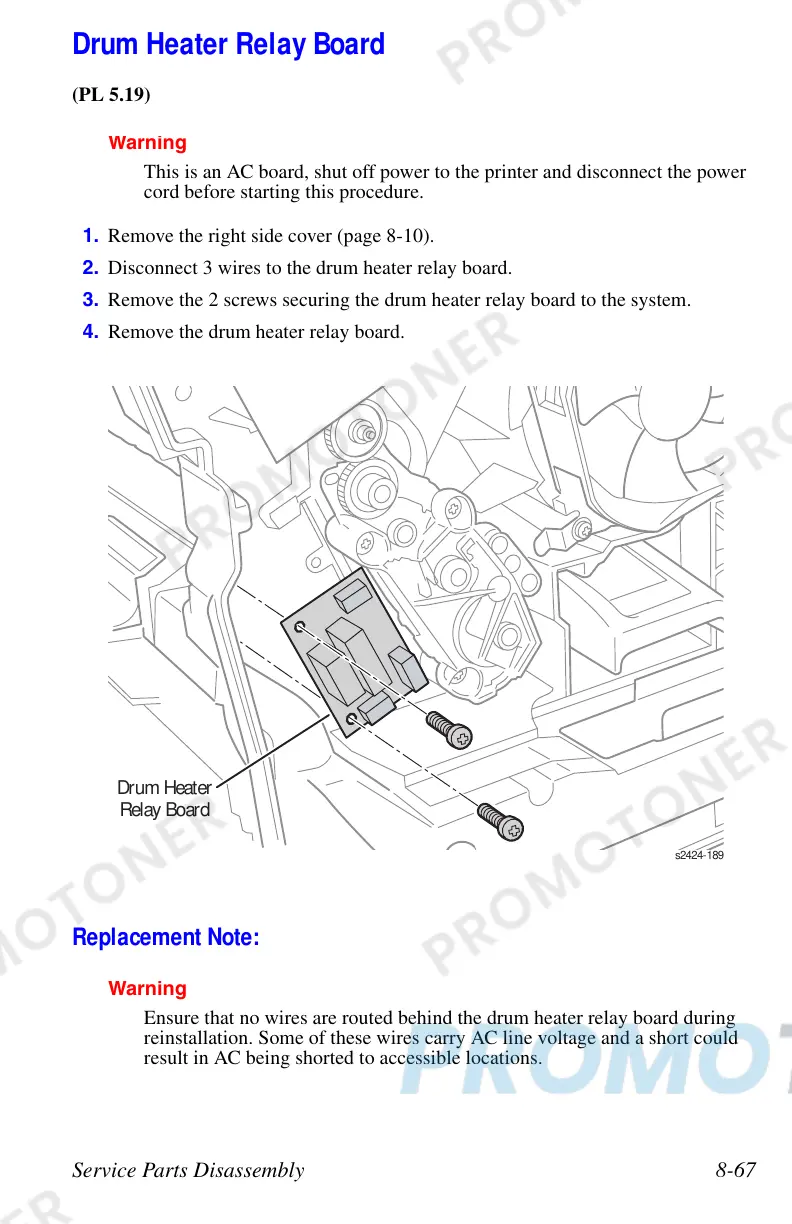

Drum Heater Relay Board
(PL 5.19)
arn
ng
This is an AC board, shut off power to the printer and disconnect the power
cord before starting this procedure.
1. Remove the right side cover (page 8-10).
2. Disconnect 3 wires to the drum heater relay board.
3. Remove the 2 screws securing the drum heater relay board to the system.
4. Remove the drum heater relay board.
Replacement Note:
arn
ng
Ensure that no wires are routed behind the drum heater relay board during
reinstallation. Some of these wires carry AC line voltage and a short could
result in AC being shorted to accessible locations.
Drum Heater
Relay Board
