Xerox WorkCentre C2424DX

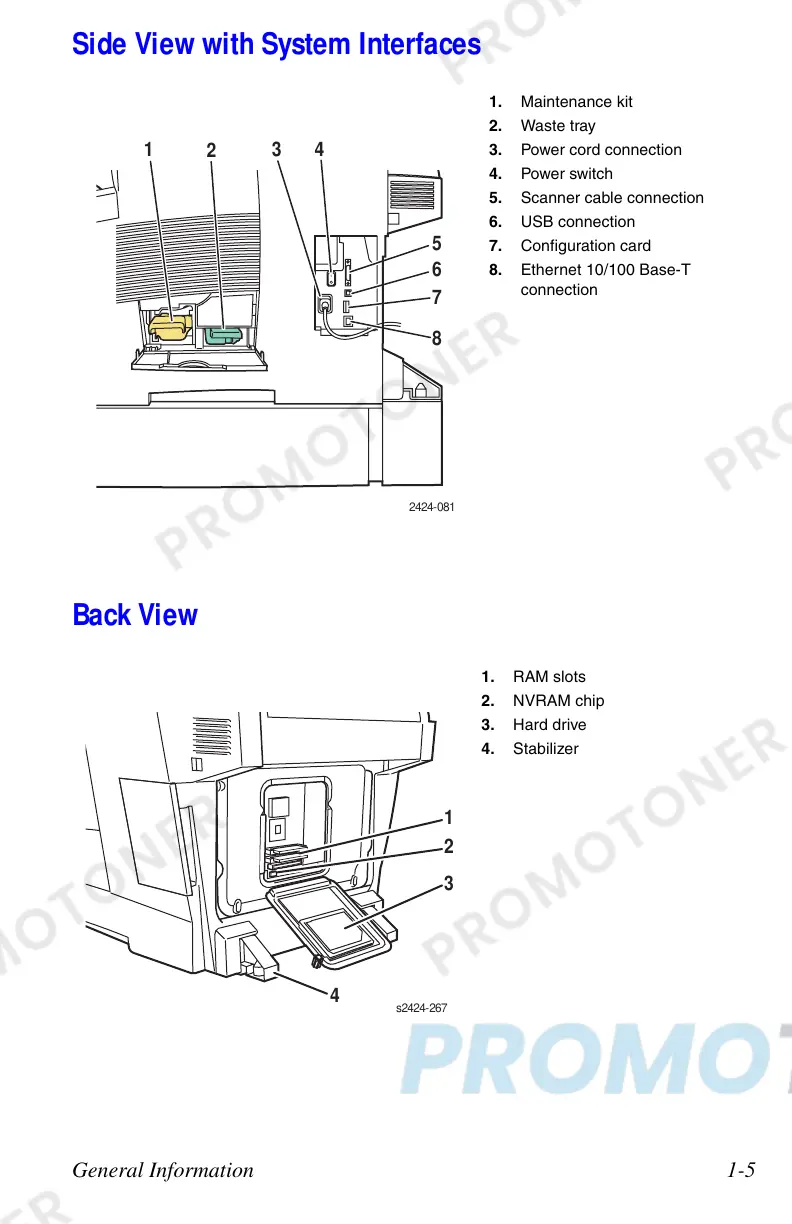

General Information 1-5
Side View with System Interfaces
Back View
1. Maintenance kit
2. Waste tray
3. Power cord connection
4. Power switch
5. Scanner cable connection
6. USB connection
7. Configuration card
8. Ethernet 10/100 Base-T
connection
1. RAM slots
2. NVRAM chip
3. Hard drive
4. Stabilizer
2424-081
5
6
7
8
1
2
3
4
s2424-267
1
3
4
2
