2-22 WorkCentre C2424 Service Manual

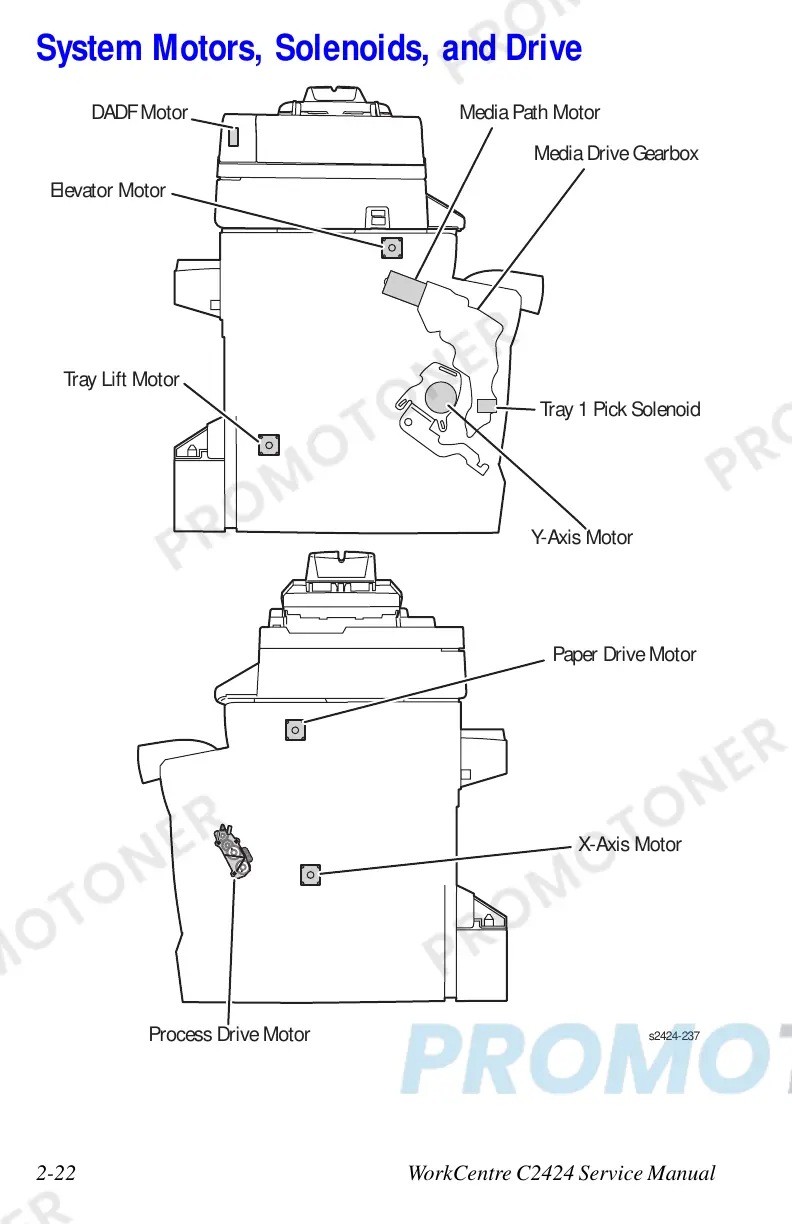

System Motors, Solenoids, and Drive

s2424-2

DADF Motor

levator Motor

Media Drive Gearb

Media Path Motor

Y-Axis Motor

Tray 1 Pick Soleno

Tray Lift Motor

Paper Drive Mot

Process Drive Motor

X-Axis Motor
