8-42 WorkCentre C2424 Service Manual

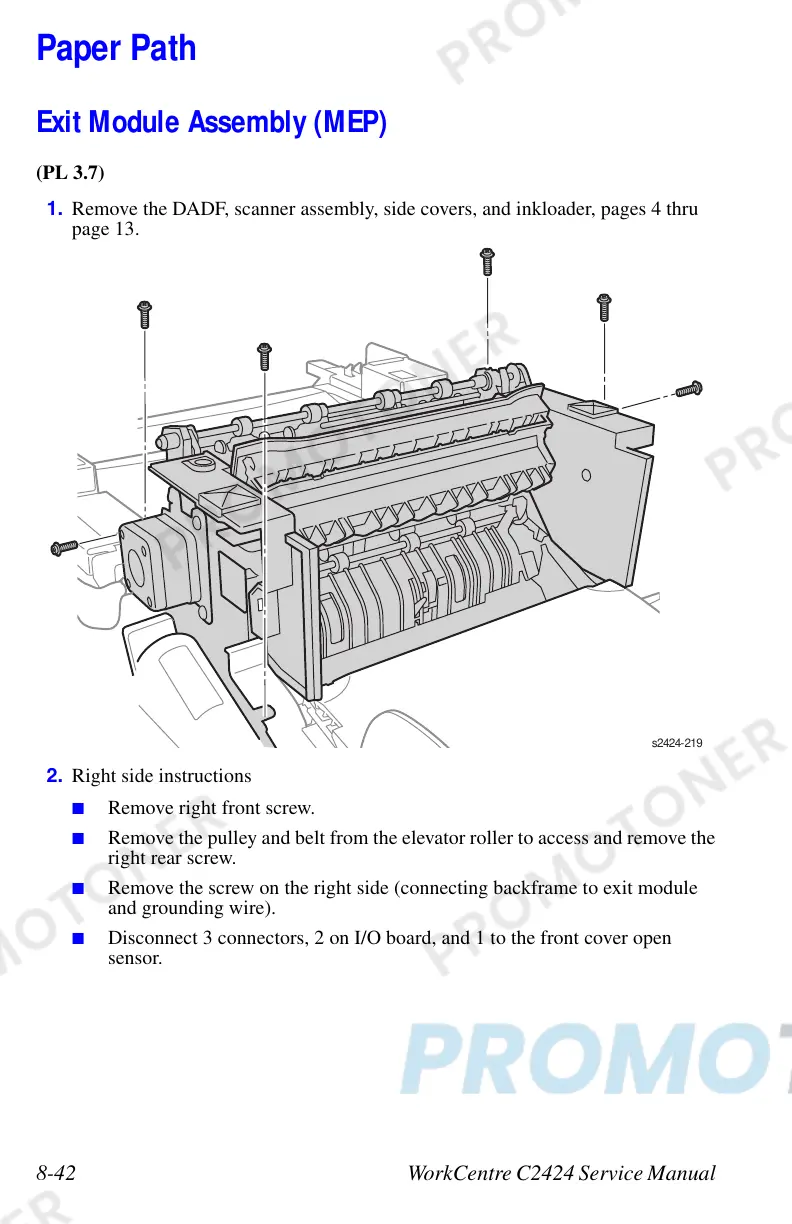

Paper Path
Exit Module Assembly (MEP)
(PL 3.7)
1. Remove the DADF, scanner assembly, side covers, and inkloader, pages 4 thru
page 13.
2. Right side instructions
■ Remove right front screw.
■ Remove the pulley and belt from the elevator roller to access and remove the
right rear screw.
■ Remove the screw on the right side (connecting backframe to exit module
and grounding wire).
■ Disconnect 3 connectors, 2 on I/O board, and 1 to the front cover open
sensor.
s2424-2
19
