Service Parts Disassembly 8-41

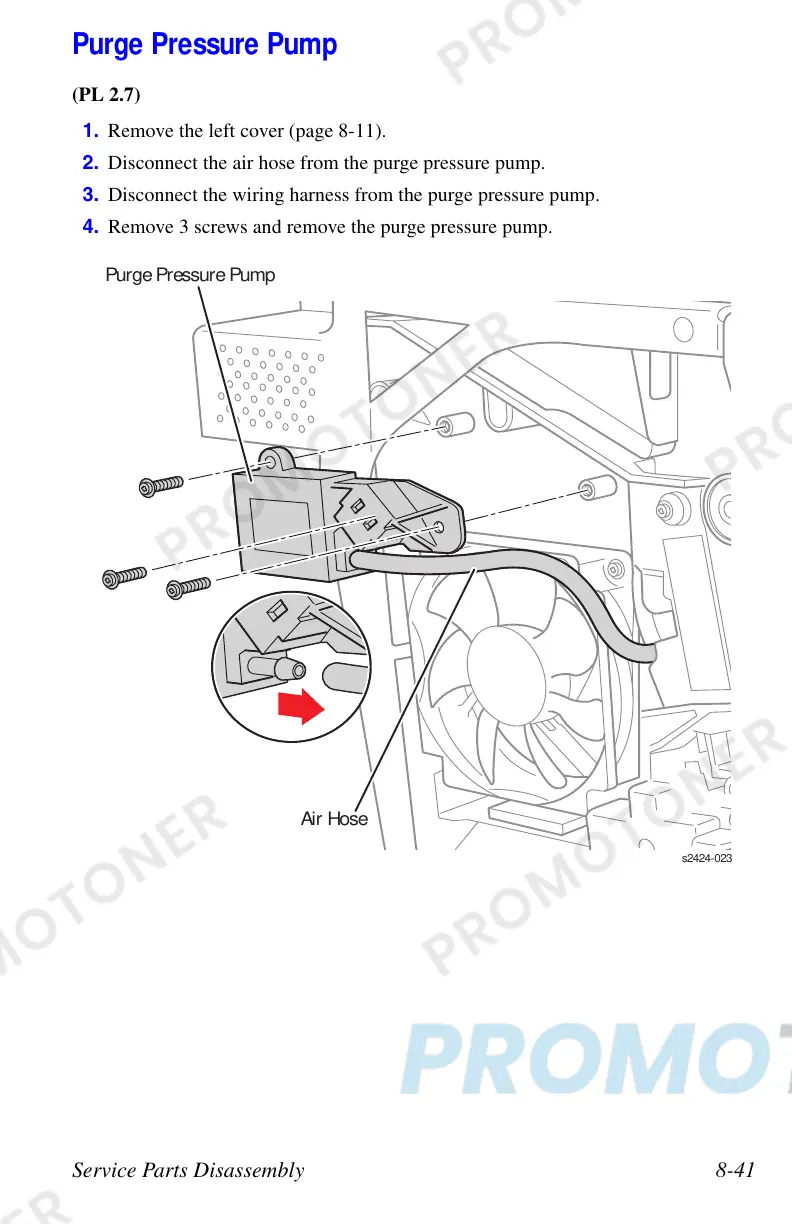

Purge Pressure Pump

(PL 2.7)

1. Remove the left cover (page 8-11).

2. Disconnect the air hose from the purge pressure pump.

3. Disconnect the wiring harness from the purge pressure pump.

4. Remove 3 screws and remove the purge pressure pump.

s2424-023

Purge Pressure Pump

Air Hose
