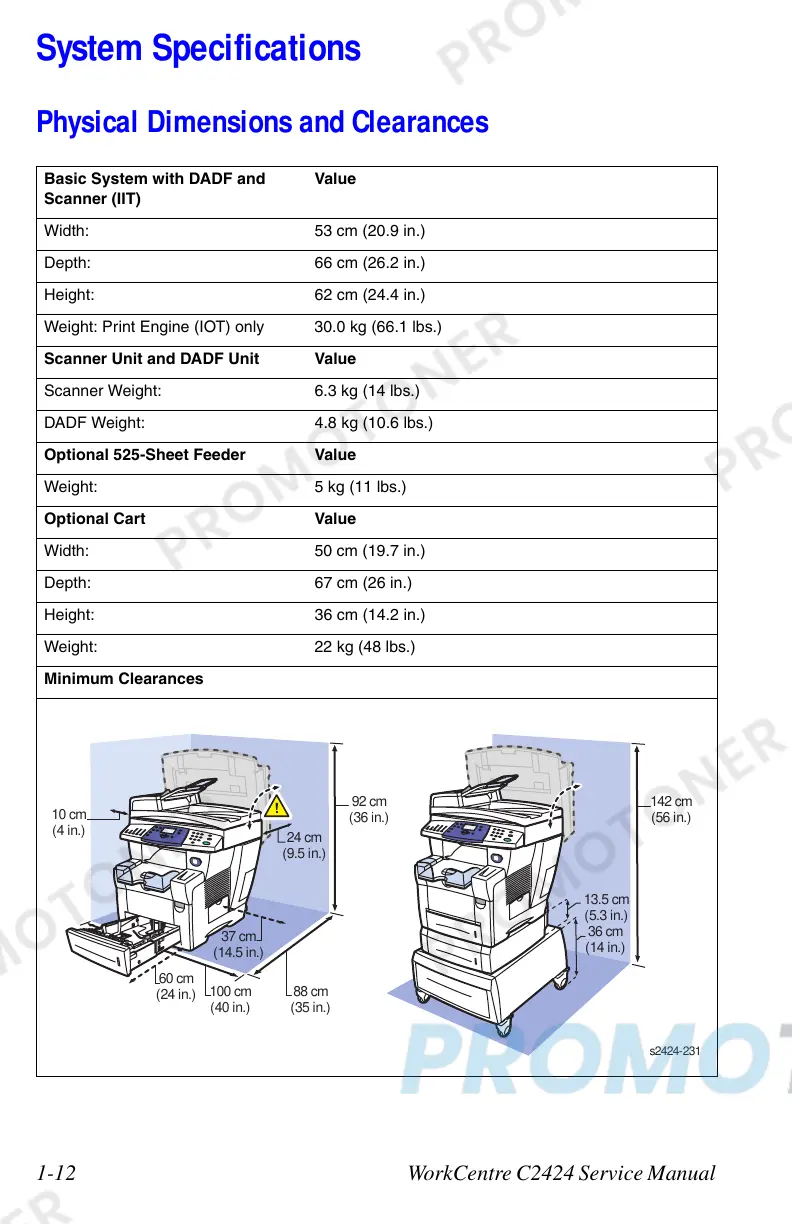

System Specifications
Physical Dimensions and Clearances
Basic System with DADF and
Scanner (IIT)
Value
Width: 53 cm (20.9 in.)
Depth: 66 cm (26.2 in.)
Height: 62 cm (24.4 in.)
Weight: Print Engine (IOT) only 30.0 kg (66.1 lbs.)
Scanner Unit and DADF Unit Value
Scanner Weight: 6.3 kg (14 lbs.)
DADF Weight: 4.8 kg (10.6 lbs.)
Optional 525-Sheet Feeder Value
Weight: 5 kg (11 lbs.)
Optional Cart Value
Width: 50 cm (19.7 in.)
Depth: 67 cm (26 in.)
Height: 36 cm (14.2 in.)
Weight: 22 kg (48 lbs.)
Minimum Clearances
60 cm
(24 in.)
37 cm
(14.5 in.)
1
0 cm
(
4 in.)
100 cm
(40 in.)
88 cm
(35 in.)
92 cm
(36 in.)
142 cm
(56 in.
)
13.5 cm
(5.3 in.)
36 cm
(14 in.)
24 cm
(9.5 in.)
s2424-231
