8-36 WorkCentre C2424 Service Manual

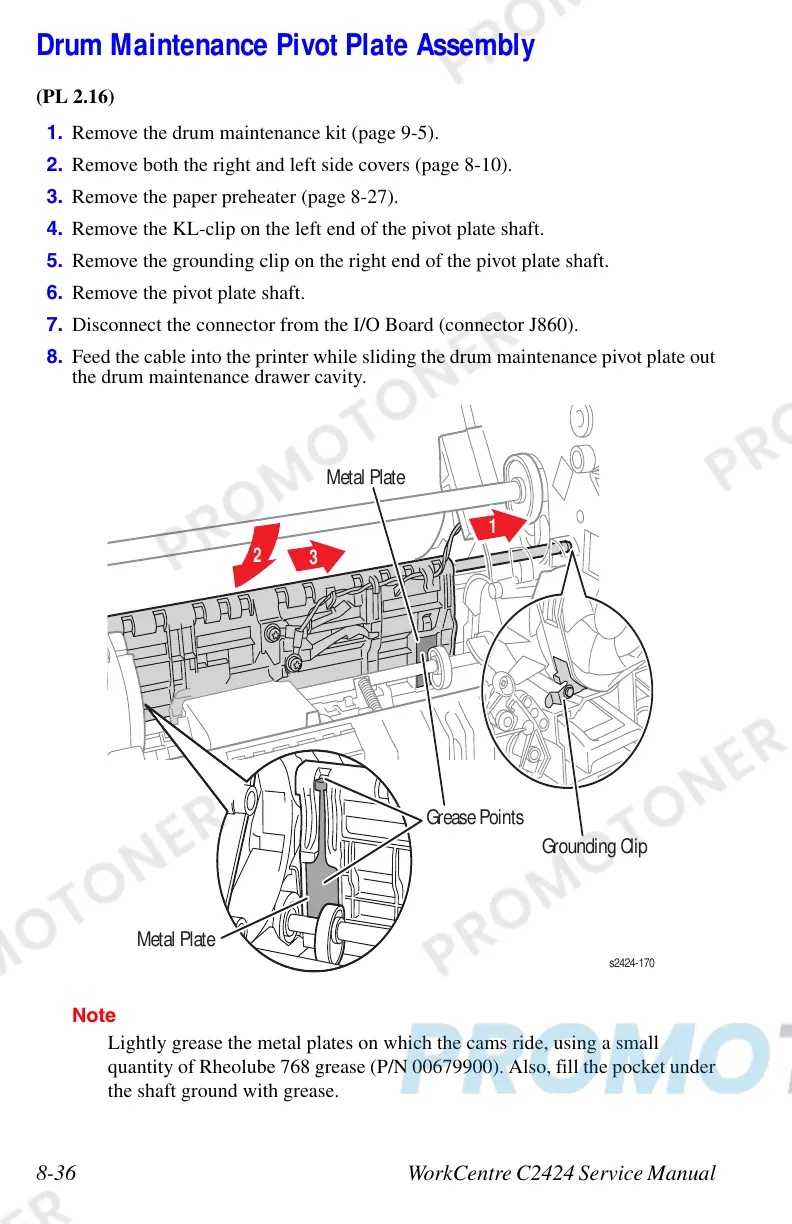

Drum Maintenance Pivot Plate Assembly
(PL 2.16)
1. Remove the drum maintenance kit (page 9-5).
2. Remove both the right and left side covers (page 8-10).
3. Remove the paper preheater (page 8-27).
4. Remove the KL-clip on the left end of the pivot plate shaft.
5. Remove the grounding clip on the right end of the pivot plate shaft.
6. Remove the pivot plate shaft.
7. Disconnect the connector from the I/O Board (connector J860).
8. Feed the cable into the printer while sliding the drum maintenance pivot plate out
the drum maintenance drawer cavity.
Note
Lightly grease the metal plates on which the cams ride, using a small
quantity of Rheolube 768 grease (P/N 00679900). Also, fill the pocket under
the shaft ground with grease.
s2424-1
Grease Points
Metal Plate
Metal Plate
1
3
2
Grounding Cli
To Next Page
