Xerox WorkCentre C2424DX - DADF Front Cover

To Next Page

To Previous Page

Service Parts Disassembly 8-5

DADF Front Cover

(PL 1.13)

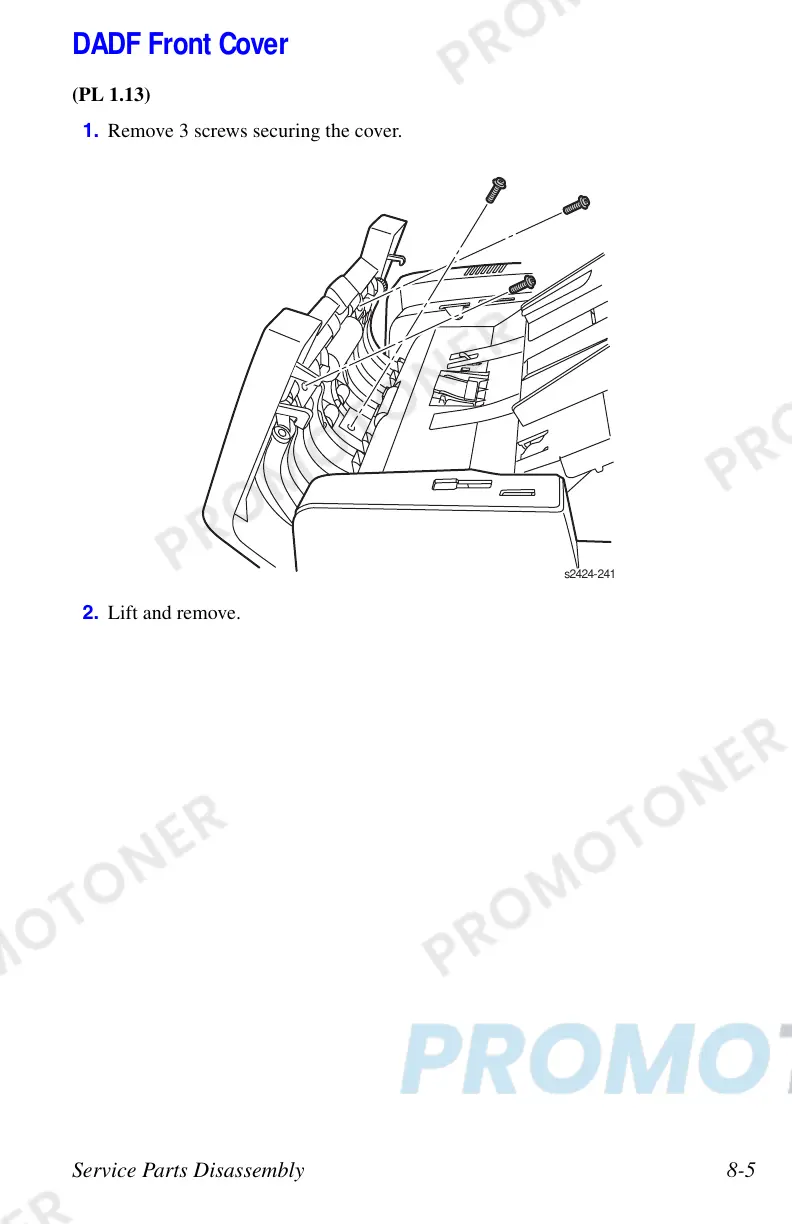

1. Remove 3 screws securing the cover.

2. Lift and remove.

s2424-2
