Theory of Operation 2-21

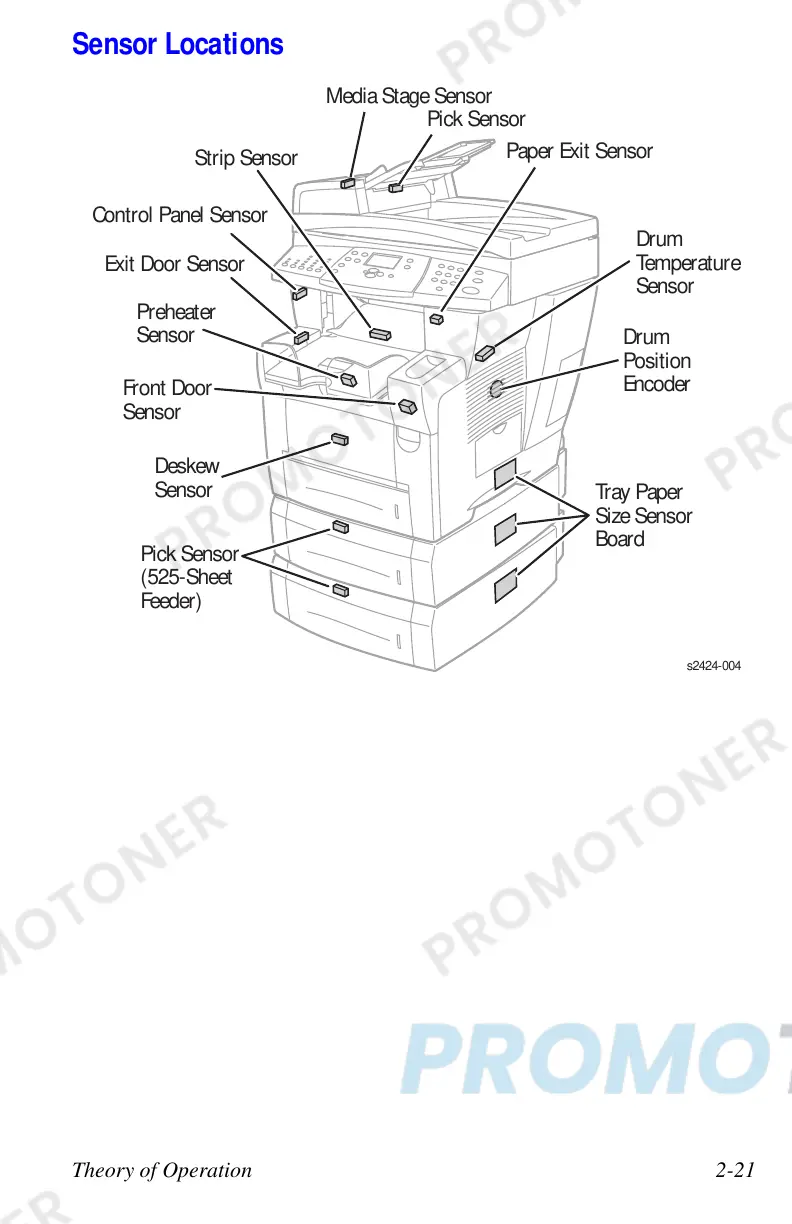

Sensor Locations

s2424-0

Exit Door Sensor

ontrol Panel Sensor

Strip Sensor

Paper Exit Sensor

Drum

Temperatu

Sensor

Drum

Position

Encoder

Tray Paper

Size Sensor

Board

Preheater

Sensor

Deskew

Sensor

Pick Sensor

(525-Sheet

Feeder)

Pick Sensor

Media Stage Sensor

Front Door

Sensor
