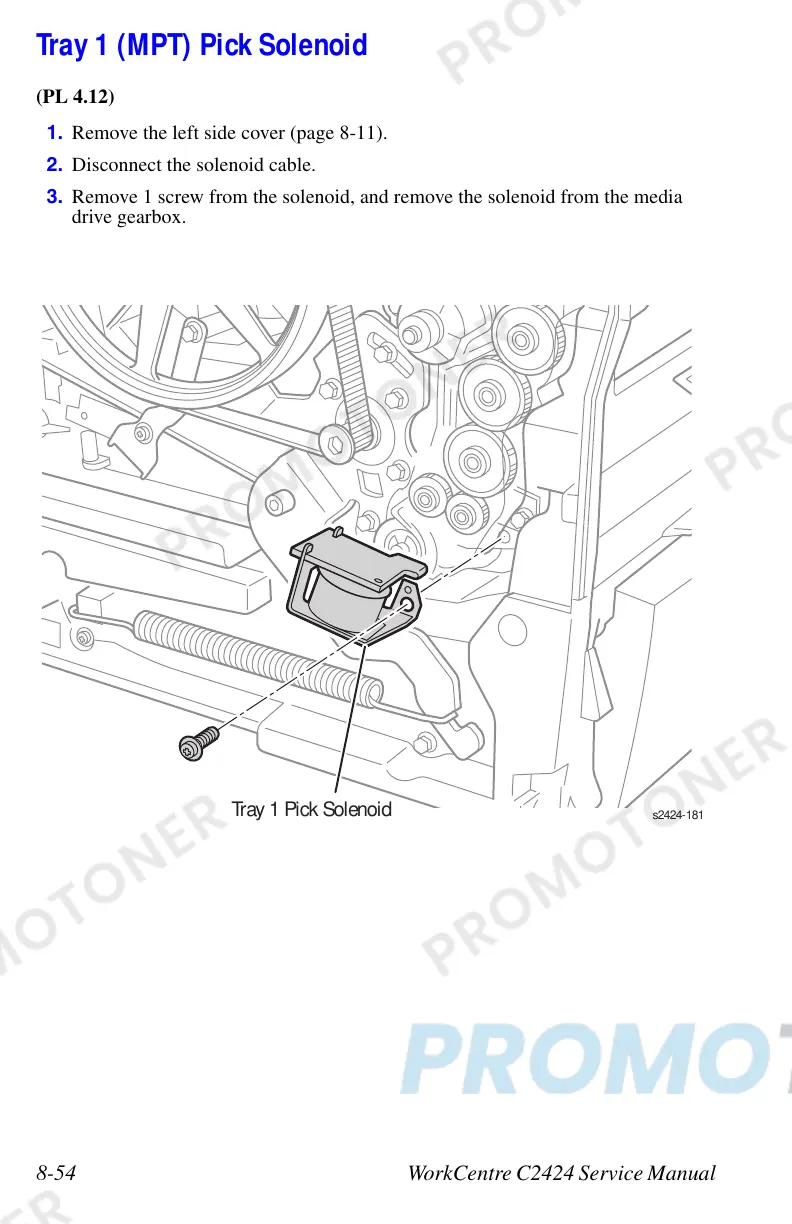

8-54 WorkCentre C2424 Service Manual

Tray 1 (MPT) Pick Solenoid

(PL 4.12)

1. Remove the left side cover (page 8-11).

2. Disconnect the solenoid cable.

3. Remove 1 screw from the solenoid, and remove the solenoid from the media

drive gearbox.

s2424-181

Tray 1 Pick Solenoid
