8-34 WorkCentre C2424 Service Manual

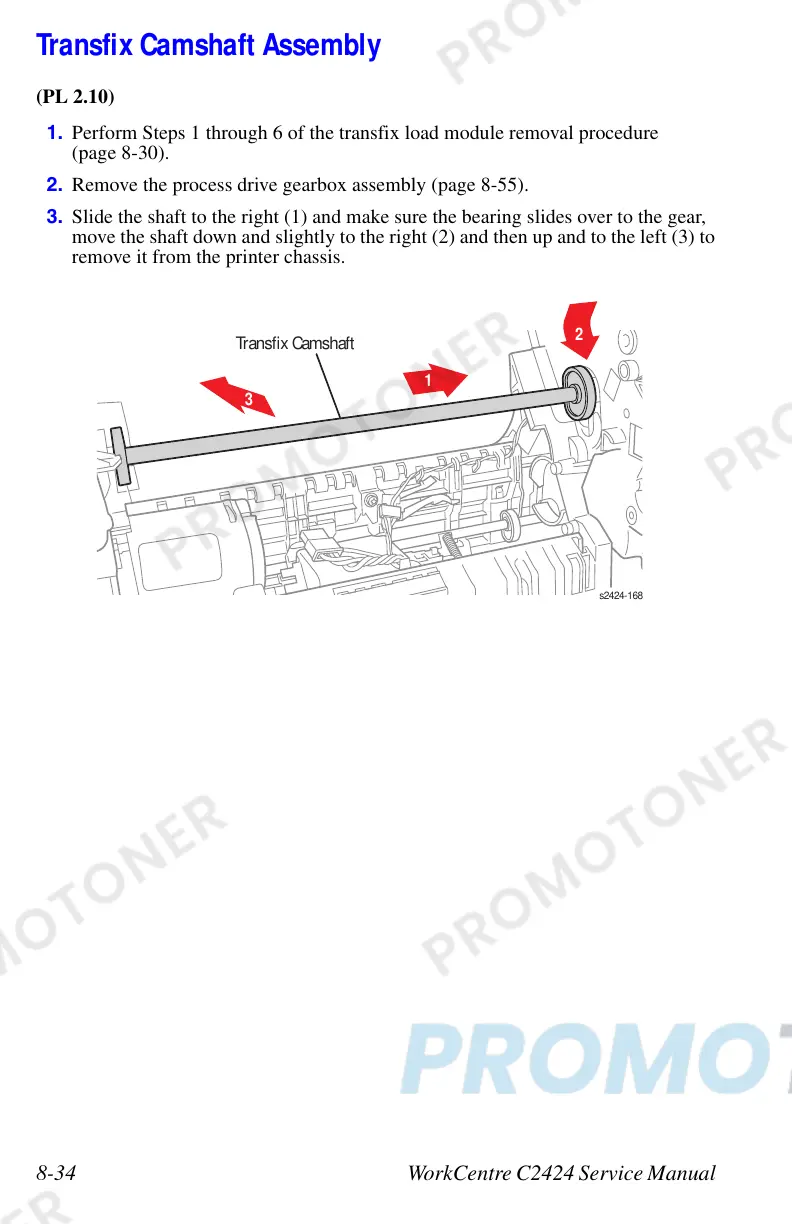

Transfix Camshaft Assembly
(PL 2.10)
1. Perform Steps 1 through 6 of the transfix load module removal procedure
(page 8-30).
2. Remove the process drive gearbox assembly (page 8-55).
3. Slide the shaft to the right (1) and make sure the bearing slides over to the gear,
move the shaft down and slightly to the right (2) and then up and to the left (3) to
remove it from the printer chassis.
s2424-1
1
2
3
Transfix Camshaft
To Next Page
