Xerox WorkCentre C2424DX User Manual

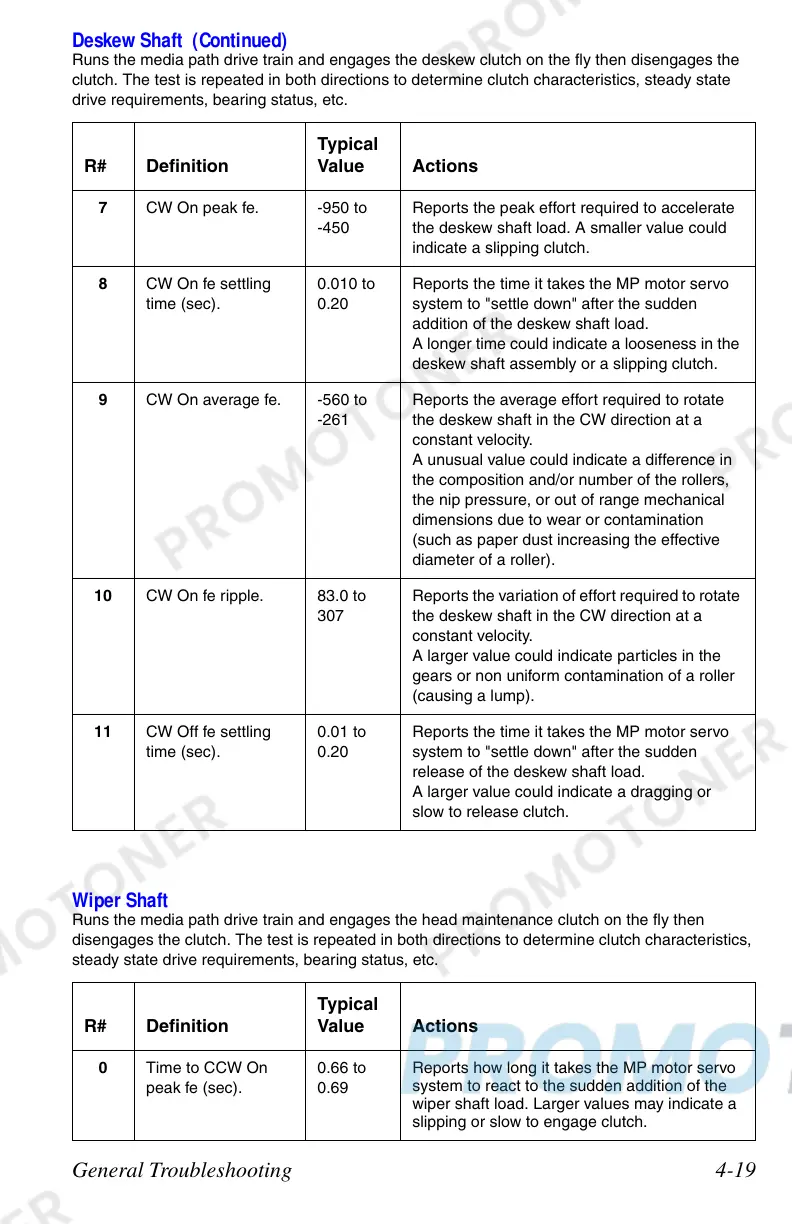

General Troubleshooting 4-19
7 CW On peak fe. -950 to
-450
Reports the peak effort required to accelerate
the deskew shaft load. A smaller value could
indicate a slipping clutch.
8 CW On fe settling
time (sec).
0.010 to
0.20
Reports the time it takes the MP motor servo
system to "settle down" after the sudden
addition of the deskew shaft load.
A longer time could indicate a looseness in the
deskew shaft assembly or a slipping clutch.
9 CW On average fe. -560 to
-261
Reports the average effort required to rotate
the deskew shaft in the CW direction at a
constant velocity.
A unusual value could indicate a difference in
the composition and/or number of the rollers,
the nip pressure, or out of range mechanical
dimensions due to wear or contamination
(such as paper dust increasing the effective
diameter of a roller).
10 CW On fe ripple. 83.0 to
307
Reports the variation of effort required to rotate
the deskew shaft in the CW direction at a
constant velocity.
A larger value could indicate particles in the
gears or non uniform contamination of a roller
(causing a lump).
11 CW Off fe settling
time (sec).
0.01 to
0.20
Reports the time it takes the MP motor servo
system to "settle down" after the sudden
release of the deskew shaft load.
A larger value could indicate a dragging or
slow to release clutch.
Wiper Shaft
Runs the media path drive train and engages the head maintenance clutch on the fly then
disengages the clutch. The test is repeated in both directions to determine clutch characteristics,
steady state drive requirements, bearing status, etc.
R# Definition
Typical
Value Actions
0 Time to CCW On
peak fe (sec).
0.66 to
0.69
Reports how long it takes the MP motor servo
system to react to the sudden addition of the
wiper shaft load. Larger values may indicate a
slipping or slow to engage clutch.
Deskew Shaft (Continued)
Runs the media path drive train and engages the deskew clutch on the fly then disengages the
clutch. The test is repeated in both directions to determine clutch characteristics, steady state
drive requirements, bearing status, etc.
R# Definition
Typical
Value Actions
