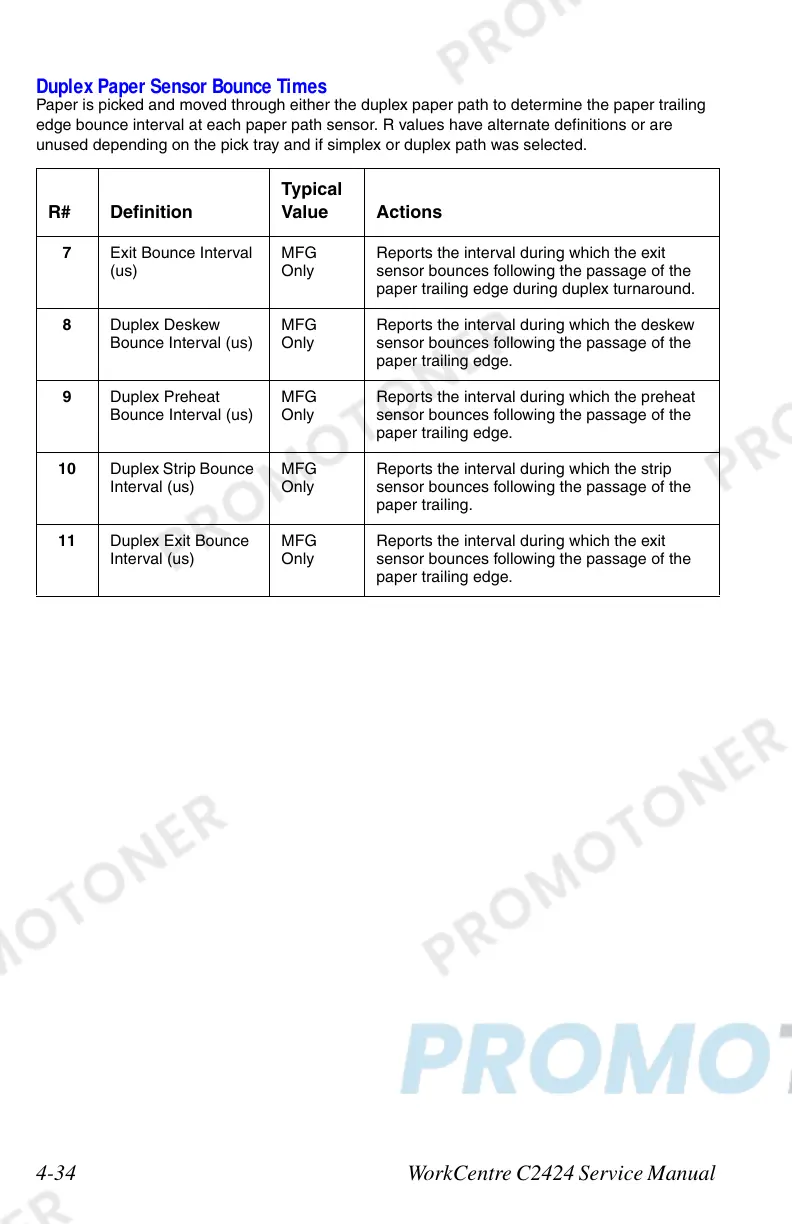

Duplex Paper Sensor Bounce Times
Paper is picked and moved through either the duplex paper path to determine the paper trailing
edge bounce interval at each paper path sensor. R values have alternate definitions or are
unused depending on the pick tray and if simplex or duplex path was selected.
R# Definition
Typical
Value Actions
7 Exit Bounce Interval
(us)
MFG
Only
Reports the interval during which the exit
sensor bounces following the passage of the
paper trailing edge during duplex turnaround.
8 Duplex Deskew
Bounce Interval (us)
MFG
Only
Reports the interval during which the deskew
sensor bounces following the passage of the
paper trailing edge.
9 Duplex Preheat
Bounce Interval (us)
MFG
Only
Reports the interval during which the preheat
sensor bounces following the passage of the
paper trailing edge.
10 Duplex Strip Bounce
Interval (us)
MFG
Only
Reports the interval during which the strip
sensor bounces following the passage of the
paper trailing.
11 Duplex Exit Bounce
Interval (us)
MFG
Only
Reports the interval during which the exit
sensor bounces following the passage of the
paper trailing edge.
