Xerox WorkCentre C2424DX User Manual

4-50 WorkCentre C2424 Service Manual
2, 3,
4
MFG
Only
1 - media width middle
2, 3,
4
MFG
Only
0 - Media width bottom

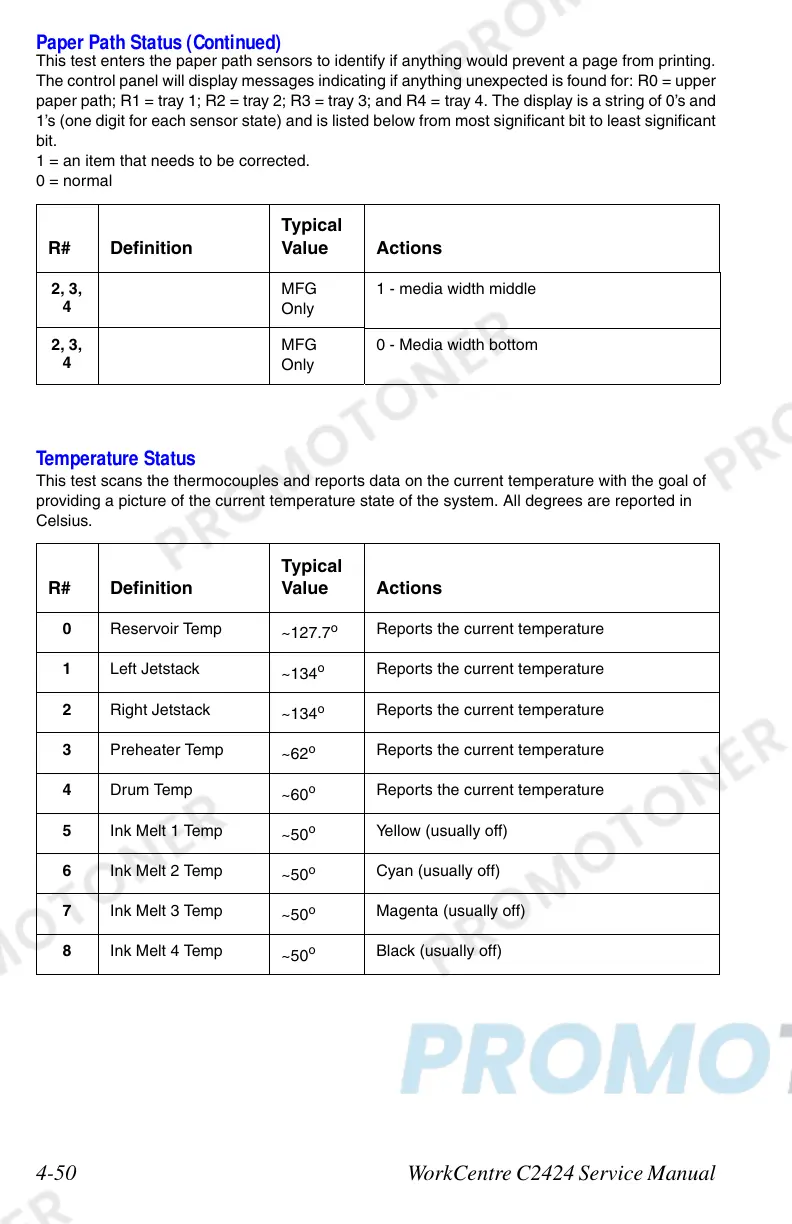

Temperature Status
This test scans the thermocouples and reports data on the current temperature with the goal of
providing a picture of the current temperature state of the system. All degrees are reported in
Celsius.
R# Definition
Typical
Value Actions
0 Reservoir Temp
~127.7
o
Reports the current temperature
1 Left Jetstack
~134
o
Reports the current temperature
2 Right Jetstack
~134
o
Reports the current temperature
3 Preheater Temp
~62
o
Reports the current temperature
4 Drum Temp
~60
o
Reports the current temperature
5 Ink Melt 1 Temp
~50
o
Yellow (usually off)
6 Ink Melt 2 Temp
~50
o
Cyan (usually off)
7 Ink Melt 3 Temp
~50
o
Magenta (usually off)
8 Ink Melt 4 Temp
~50
o
Black (usually off)
Paper Path Status (Continued)
This test enters the paper path sensors to identify if anything would prevent a page from printing.
The control panel will display messages indicating if anything unexpected is found for: R0 = upper
paper path; R1 = tray 1; R2 = tray 2; R3 = tray 3; and R4 = tray 4. The display is a string of 0’s and
1’s (one digit for each sensor state) and is listed below from most significant bit to least significant
bit.
1 = an item that needs to be corrected.
0 = normal
R# Definition
Typical
Value Actions
