General Troubleshooting 4-53

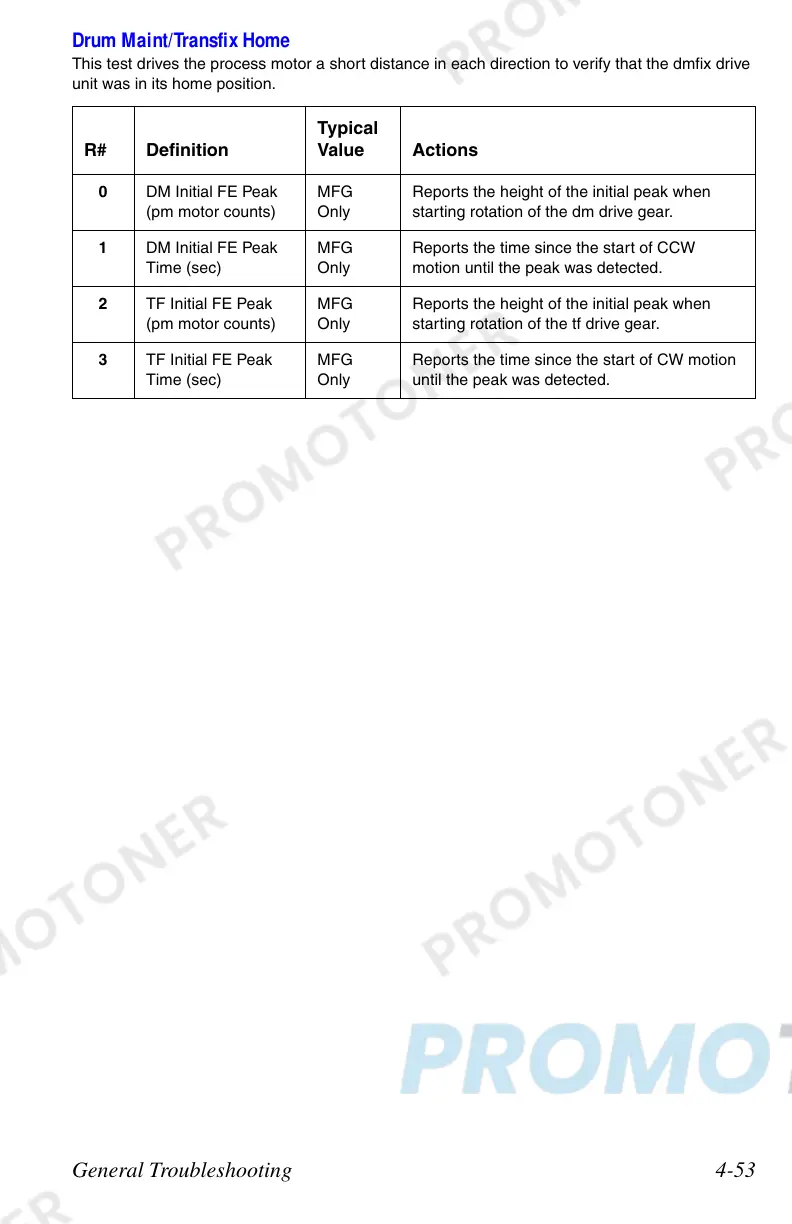

Drum Maint/Transfix Home
This test drives the process motor a short distance in each direction to verify that the dmfix drive
unit was in its home position.
R# Definition
Typical
Value Actions
0 DM Initial FE Peak
(pm motor counts)
MFG
Only
Reports the height of the initial peak when
starting rotation of the dm drive gear.
1 DM Initial FE Peak
Time (sec)
MFG
Only
Reports the time since the start of CCW
motion until the peak was detected.
2 TF Initial FE Peak
(pm motor counts)
MFG
Only
Reports the height of the initial peak when
starting rotation of the tf drive gear.
3 TF Initial FE Peak
Time (sec)
MFG
Only
Reports the time since the start of CW motion
until the peak was detected.
