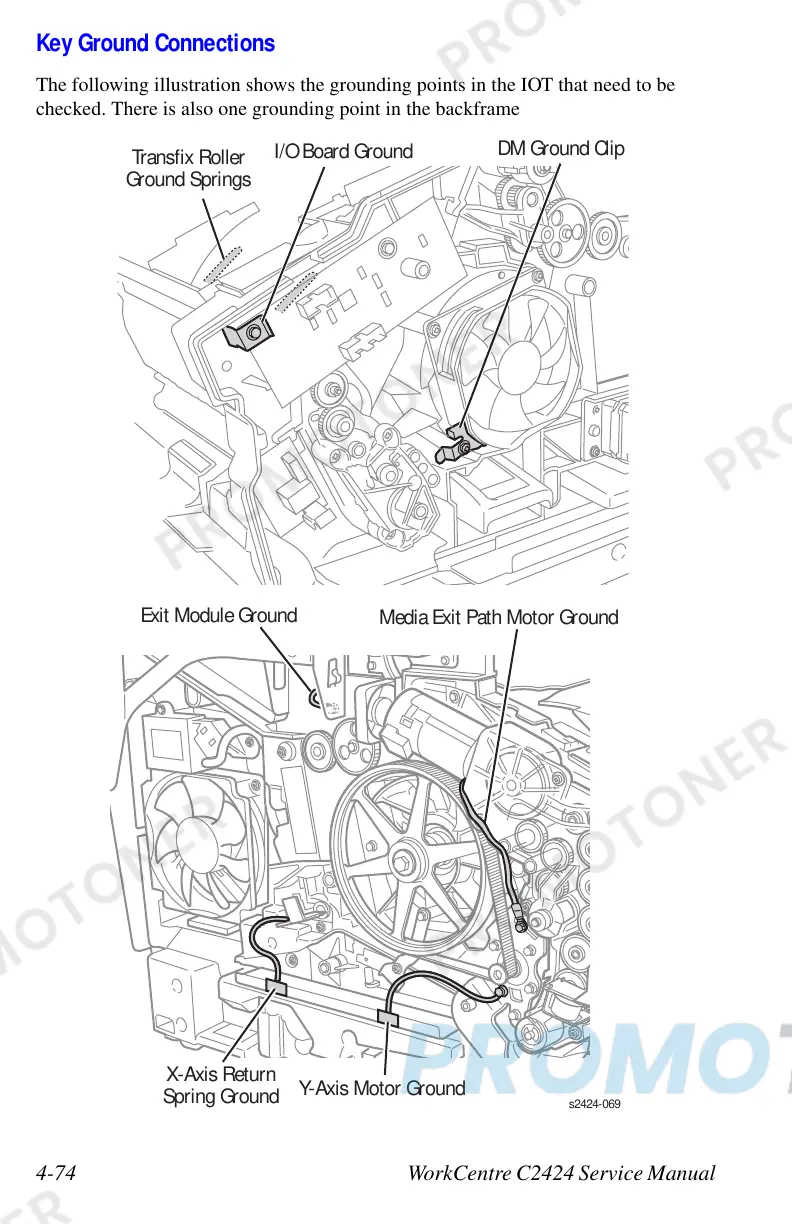

Key Ground Connections
The following illustration shows the grounding points in the IOT that need to be
checked. There is also one grounding point in the backframe
s2424-069
Transfix Roller
Ground Springs
I/O Board Ground
DM Ground Clip
X-Axis Return
Spring Ground
Y-Axis Motor Ground
Exit Module Ground
Media Exit Path Motor Groun
d
