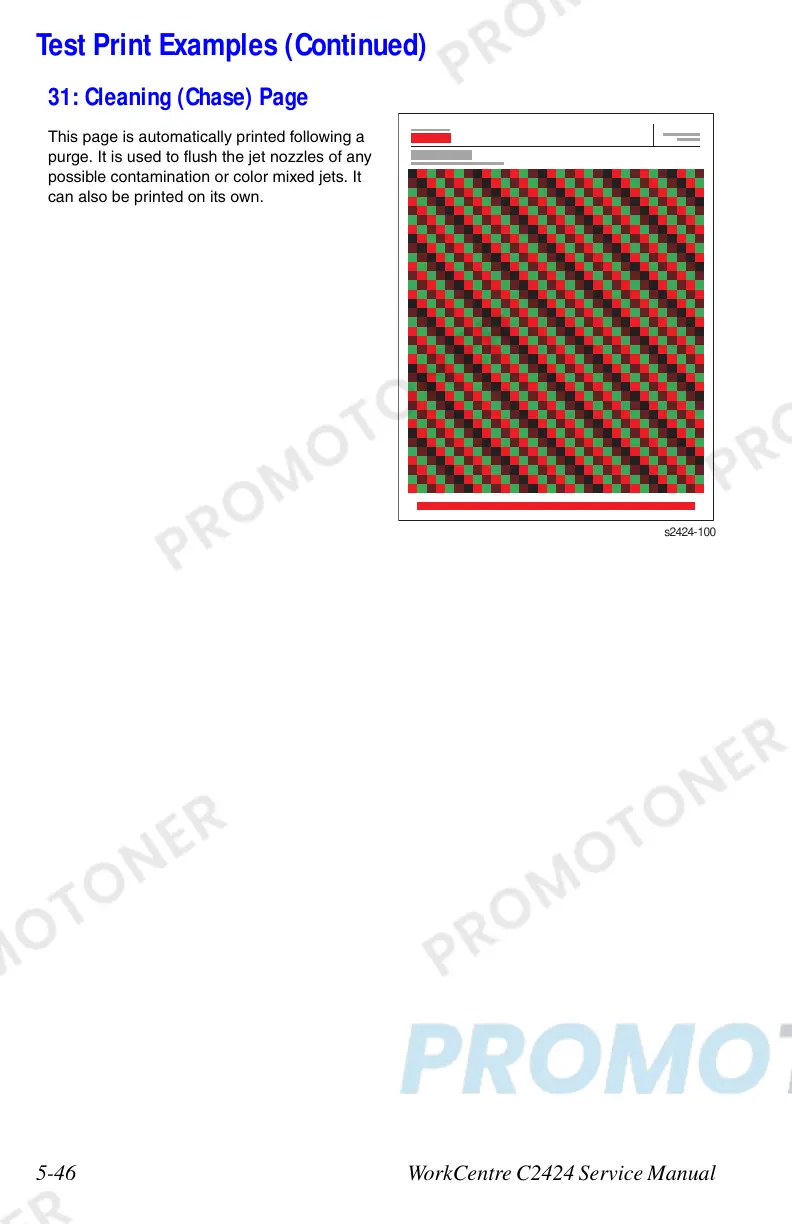

5-46 WorkCentre C2424 Service Manual

31: Cleaning (Chase) Page

This page is automatically printed following a

purge. It is used to flush the jet nozzles of any

possible contamination or color mixed jets. It

can also be printed on its own.

Test Print Examples (Continued)

s2424-100
