6-6 WorkCentre C2424 Service Manual
When the Printhead is in the Printer
1. Remove the maintenance kit.
2. Insert a flat blade screwdriver into the end of drum maintenance cam shaft and
rotate clockwise one revolution. If the printhead is engaged, manually assist the
movement of the printhead. There is an audible click when the gear disengages.
Note
The hole on the drum maintenance camshaft drive gear should be at the 6:00
position after the rotation.

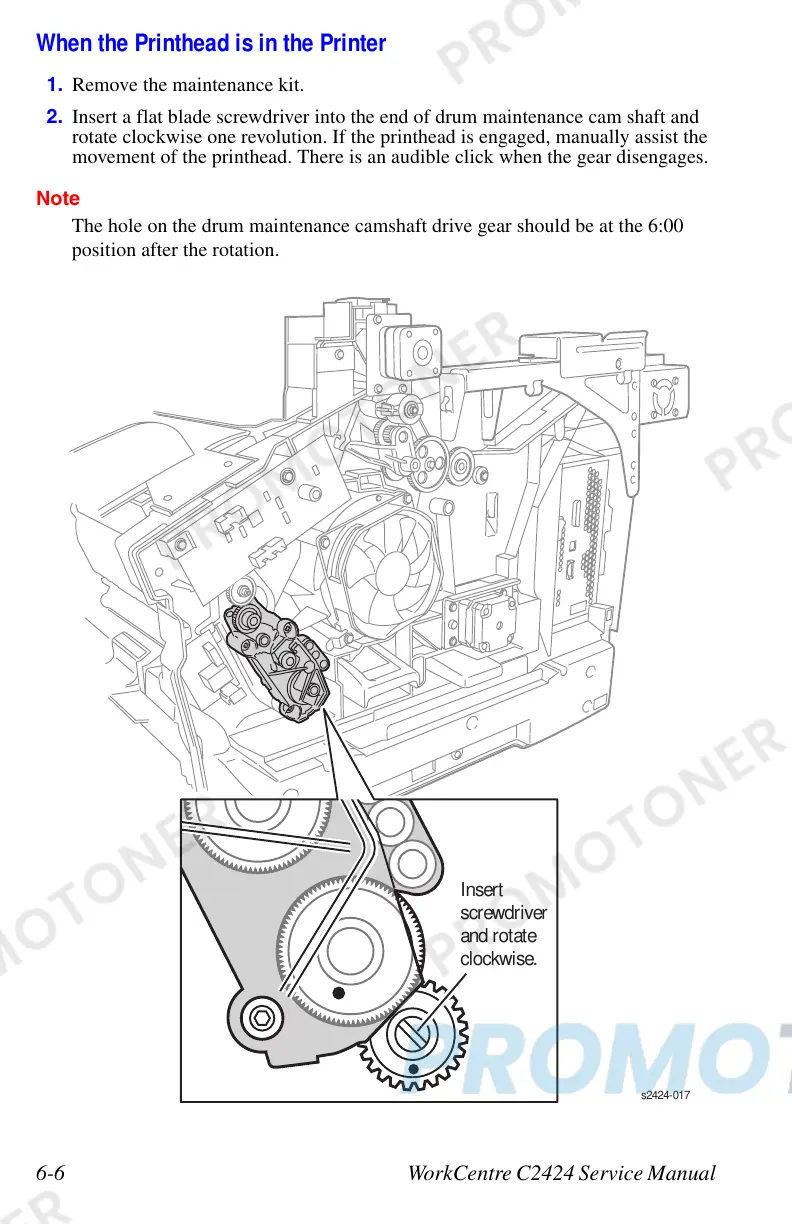

s2424-0
Insert
screwdriver
and rotate
clockwise.
