Adjustments and Calibrations 6-11

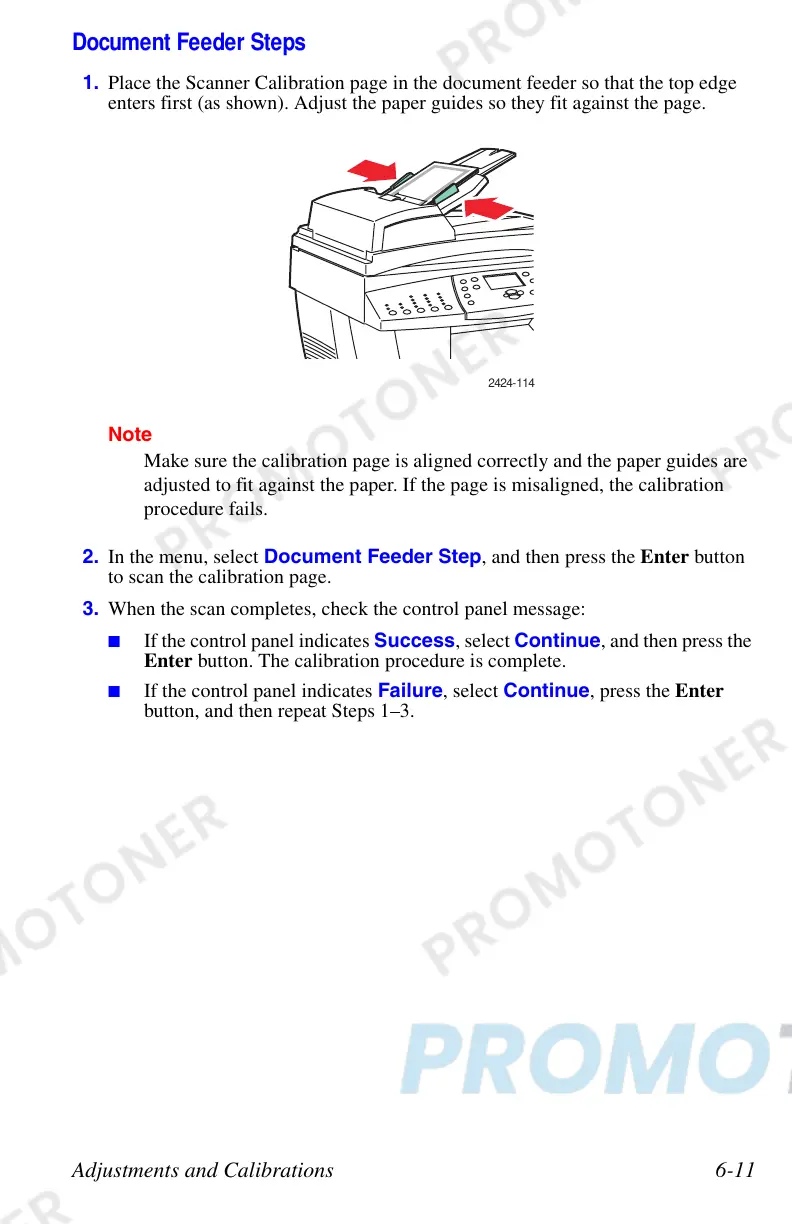

Document Feeder Steps
1. Place the Scanner Calibration page in the document feeder so that the top edge
enters first (as shown). Adjust the paper guides so they fit against the page.
Note
Make sure the calibration page is aligned correctly and the paper guides are
adjusted to fit against the paper. If the page is misaligned, the calibration
procedure fails.
2. In the menu, select Document Feeder Step, and then press the Enter button
to scan the calibration page.
3. When the scan completes, check the control panel message:
â– If the control panel indicates Success, select Continue, and then press the
Enter button. The calibration procedure is complete.
â– If the control panel indicates Failure, select Continue, press the Enter
button, and then repeat Steps 1–3.
2424-1
