Service Parts Disassembly 8-17

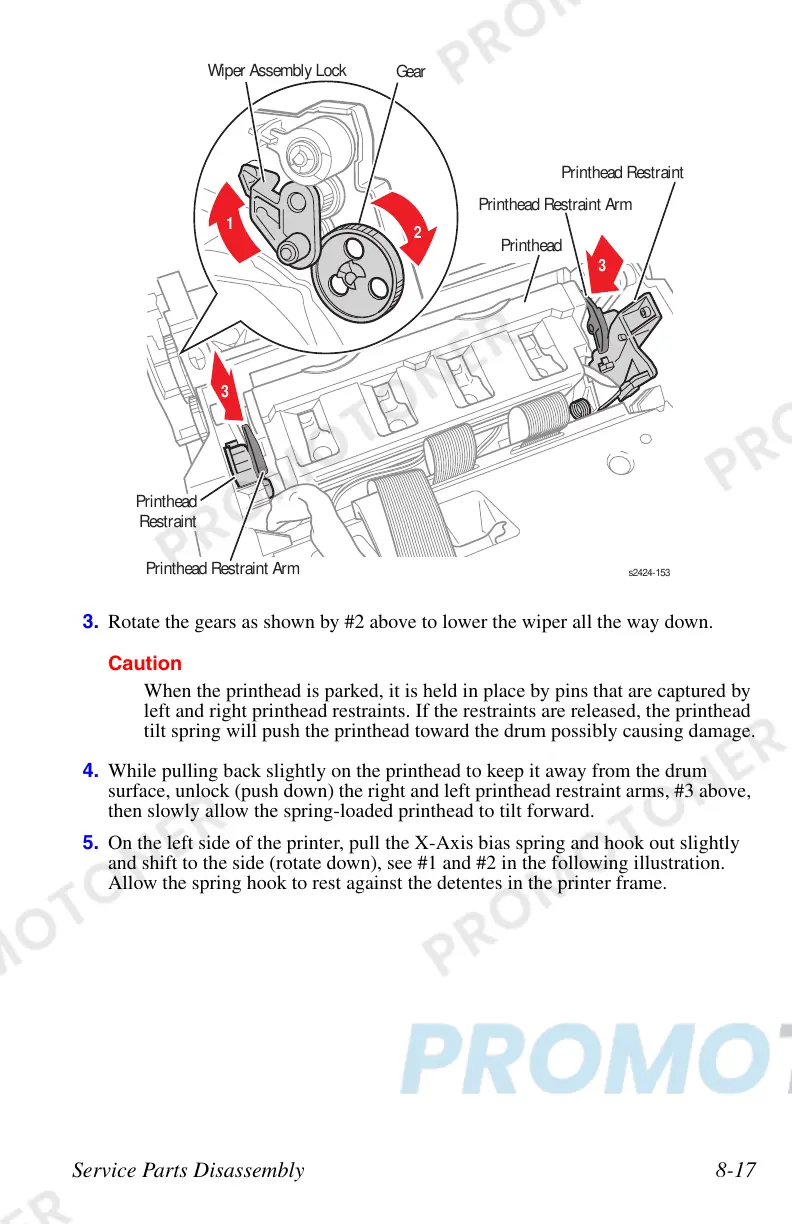

3. Rotate the gears as shown by #2 above to lower the wiper all the way down.
Caution
When the printhead is parked, it is held in place by pins that are captured by
left and right printhead restraints. If the restraints are released, the printhead
tilt spring will push the printhead toward the drum possibly causing damage.
4. While pulling back slightly on the printhead to keep it away from the drum
surface, unlock (push down) the right and left printhead restraint arms, #3 above,
then slowly allow the spring-loaded printhead to tilt forward.
5. On the left side of the printer, pull the X-Axis bias spring and hook out slightly
and shift to the side (rotate down), see #1 and #2 in the following illustration.
Allow the spring hook to rest against the detentes in the printer frame.
s2424-153
Wiper Assembly Lock
Gear
Printhead
Printhead Restra
Printhead Restraint Arm
rinthead
Restraint
Printhead Restraint Arm
2
3
3
1
