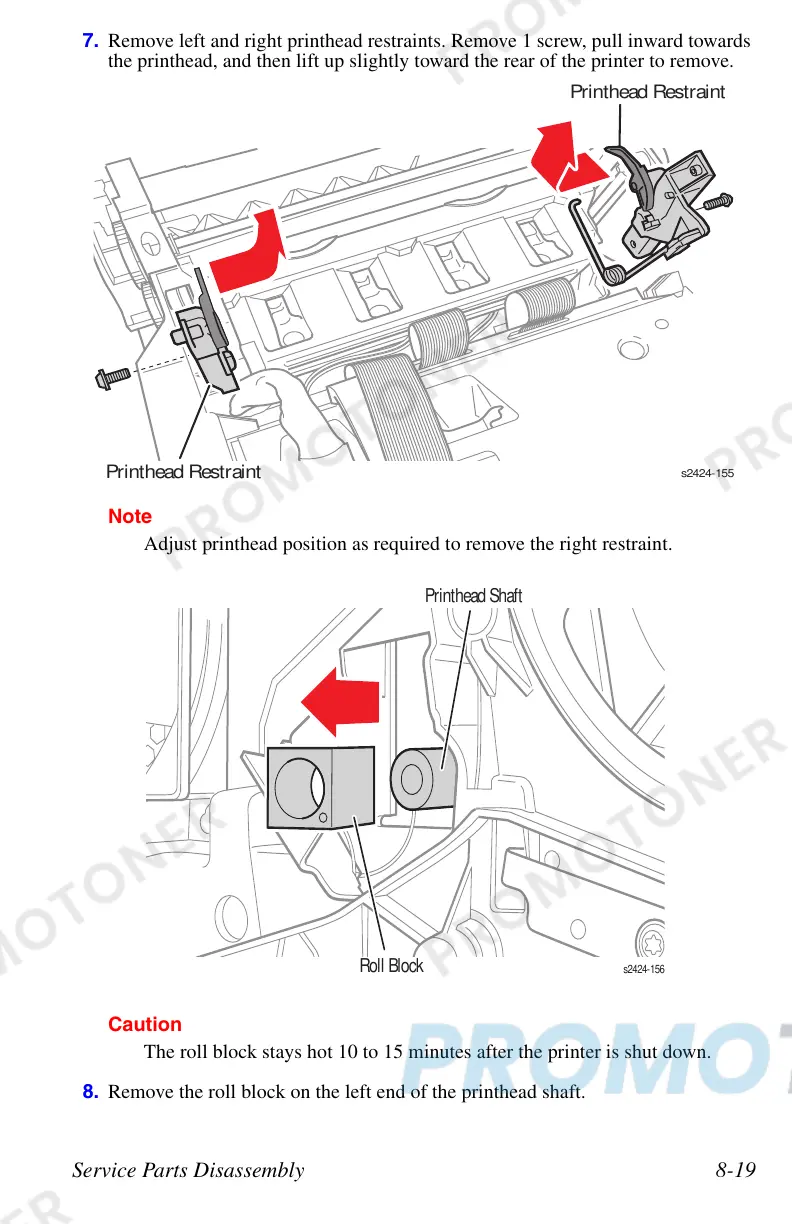

Service Parts Disassembly 8-19
7. Remove left and right printhead restraints. Remove 1 screw, pull inward towards
the printhead, and then lift up slightly toward the rear of the printer to remove.
Note
Adjust printhead position as required to remove the right restraint.
Caution
The roll block stays hot 10 to 15 minutes after the printer is shut down.
8. Remove the roll block on the left end of the printhead shaft.
s2424-1
55
Printhead Restraint
Printhead Restraint
Roll Block
Printhead Shaft
s2424-1
56
