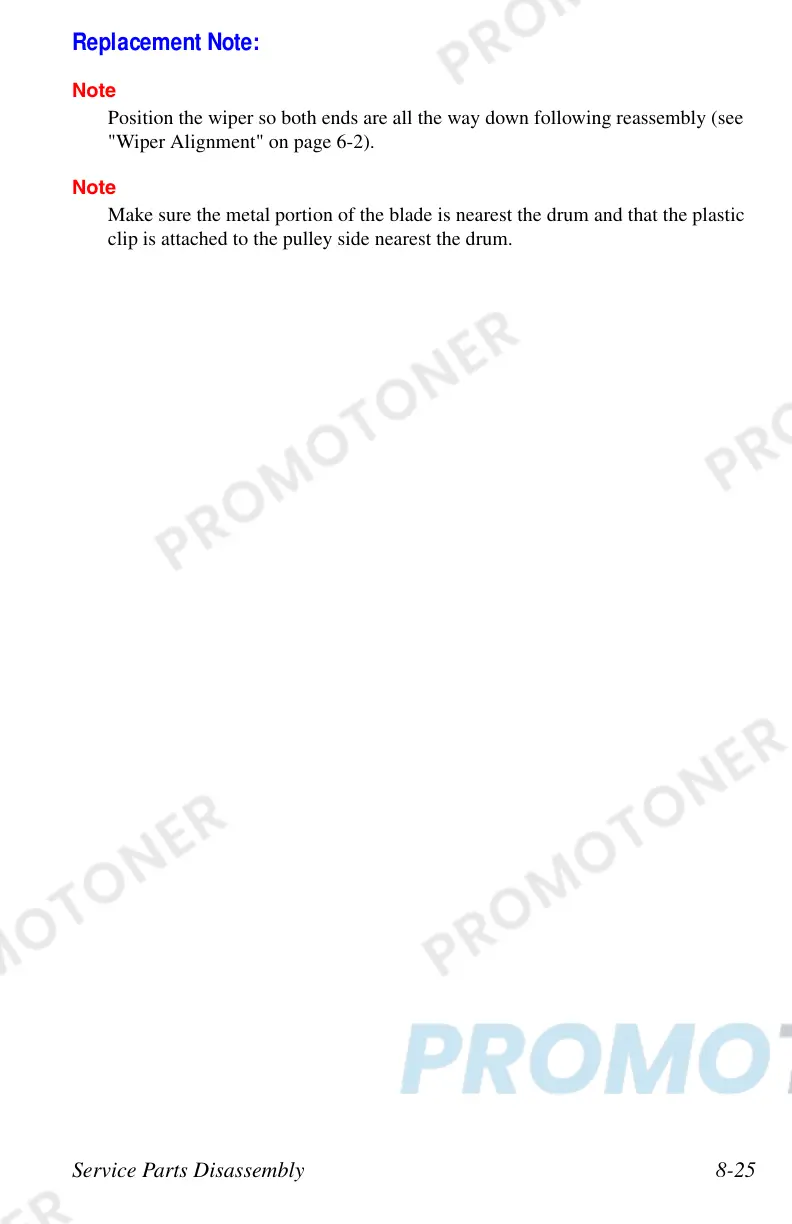

Service Parts Disassembly 8-25

Replacement Note:

Note

Position the wiper so both ends are all the way down following reassembly (see

"Wiper Alignment" on page 6-2).

Note

Make sure the metal portion of the blade is nearest the drum and that the plastic

clip is attached to the pulley side nearest the drum.
