8-28 WorkCentre C2424 Service Manual

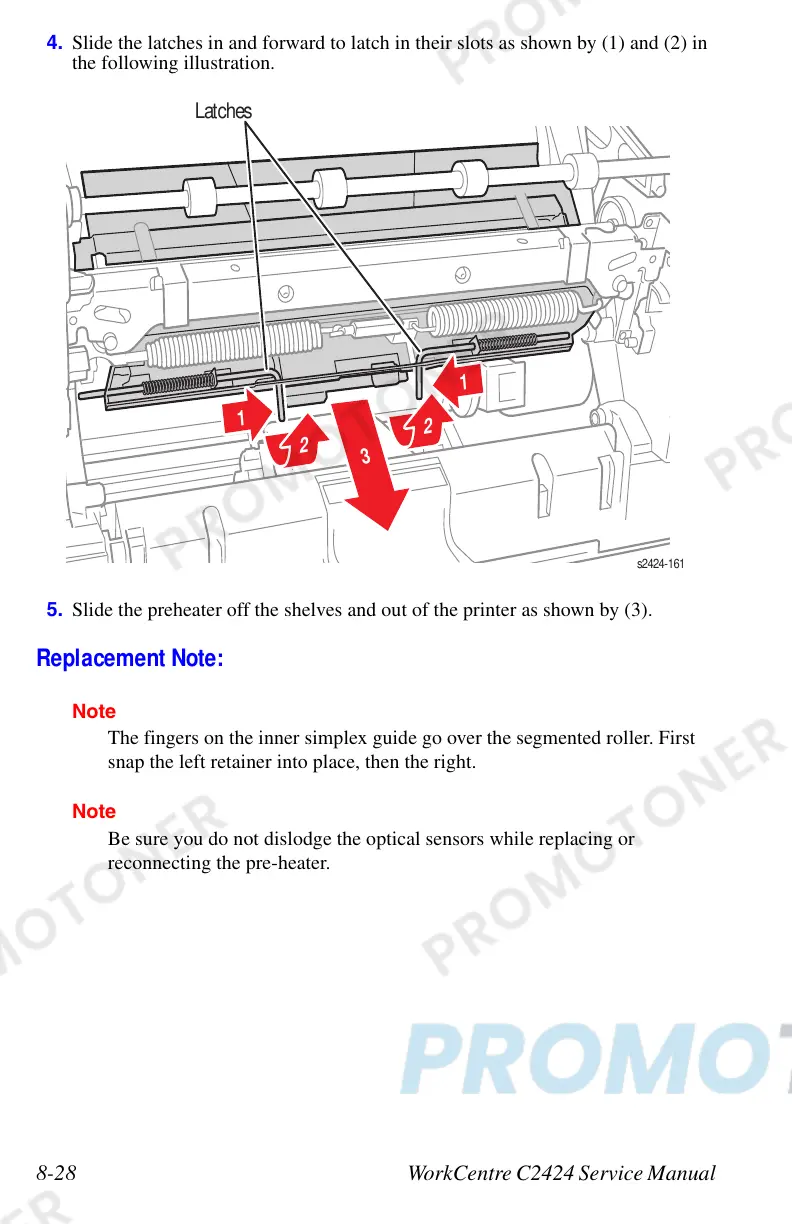

4. Slide the latches in and forward to latch in their slots as shown by (1) and (2) in
the following illustration.
5. Slide the preheater off the shelves and out of the printer as shown by (3).
Replacement Note:
Note
The fingers on the inner simplex guide go over the segmented roller. First
snap the left retainer into place, then the right.
Note
Be sure you do not dislodge the optical sensors while replacing or
reconnecting the pre-heater.
1
2
2
1
3
s2424-1
