8-50 WorkCentre C2424 Service Manual

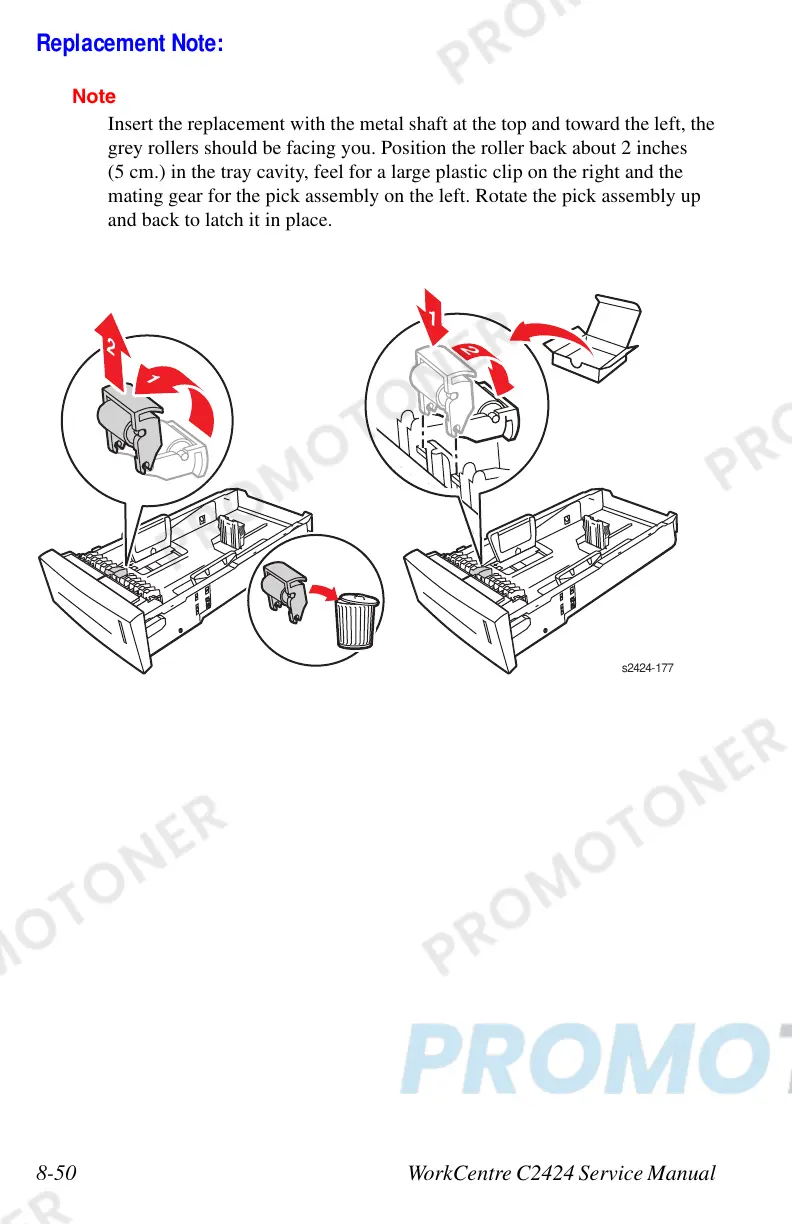

Replacement Note:
Note
Insert the replacement with the metal shaft at the top and toward the left, the
grey rollers should be facing you. Position the roller back about 2 inches
(5 cm.) in the tray cavity, feel for a large plastic clip on the right and the
mating gear for the pick assembly on the left. Rotate the pick assembly up
and back to latch it in place.
