Parts Lists 9-5

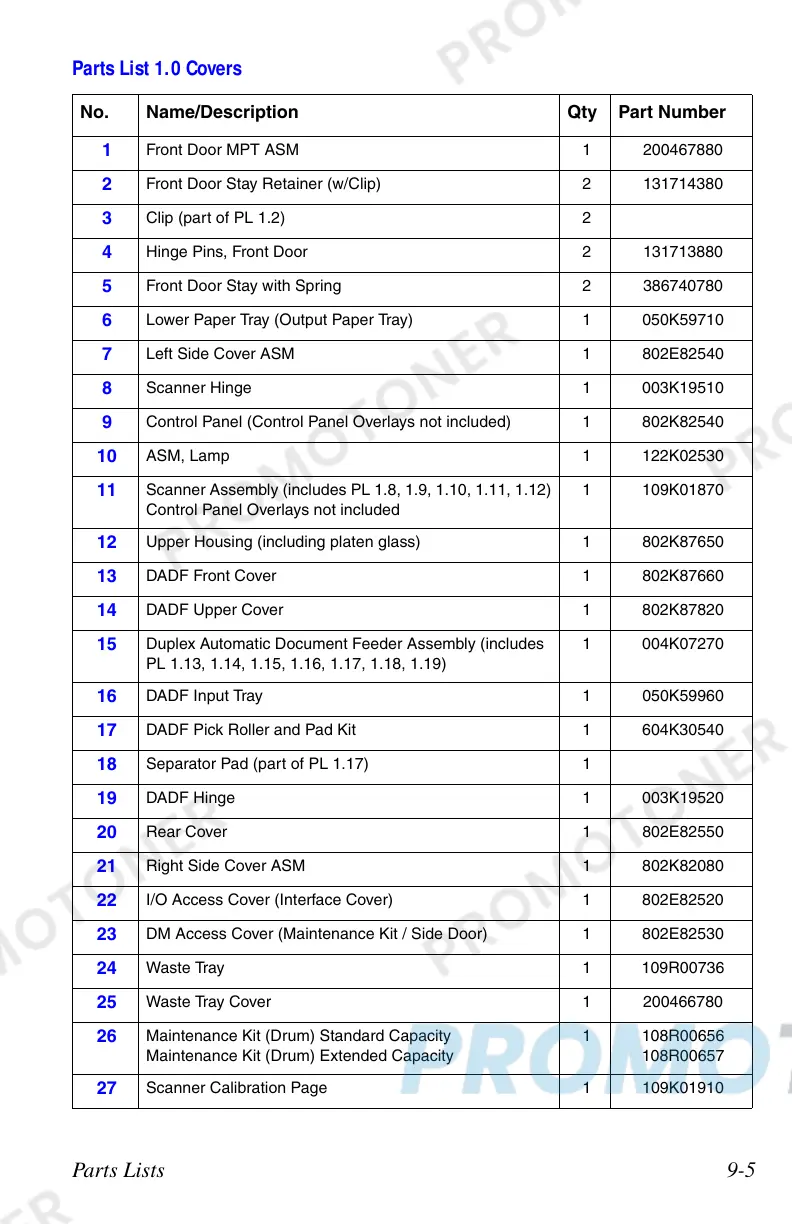

Parts List 1.0 Covers
No. Name/Description Qty Part Number
1
Front Door MPT ASM 1 200467880
2
Front Door Stay Retainer (w/Clip) 2 131714380
3
Clip (part of PL 1.2) 2
4
Hinge Pins, Front Door 2 131713880
5
Front Door Stay with Spring 2 386740780
6
Lower Paper Tray (Output Paper Tray) 1 050K59710
7
Left Side Cover ASM 1 802E82540
8
Scanner Hinge 1 003K19510
9
Control Panel (Control Panel Overlays not included) 1 802K82540
10
ASM, Lamp 1 122K02530
11
Scanner Assembly (includes PL 1.8, 1.9, 1.10, 1.11, 1.12)
Control Panel Overlays not included
1 109K01870
12
Upper Housing (including platen glass) 1 802K87650
13
DADF Front Cover 1 802K87660
14
DADF Upper Cover 1 802K87820
15
Duplex Automatic Document Feeder Assembly (includes
PL 1.13, 1.14, 1.15, 1.16, 1.17, 1.18, 1.19)
1 004K07270
16
DADF Input Tray 1 050K59960
17
DADF Pick Roller and Pad Kit 1 604K30540
18
Separator Pad (part of PL 1.17) 1
19
DADF Hinge 1 003K19520
20
Rear Cover 1 802E82550
21
Right Side Cover ASM 1 802K82080
22
I/O Access Cover (Interface Cover) 1 802E82520
23
DM Access Cover (Maintenance Kit / Side Door) 1 802E82530
24
Waste Tray 1 109R00736
25
Waste Tray Cover 1 200466780
26
Maintenance Kit (Drum) Standard Capacity
Maintenance Kit (Drum) Extended Capacity
1 108R00656
108R00657
27
Scanner Calibration Page 1 109K01910
