Parts Lists 9-9

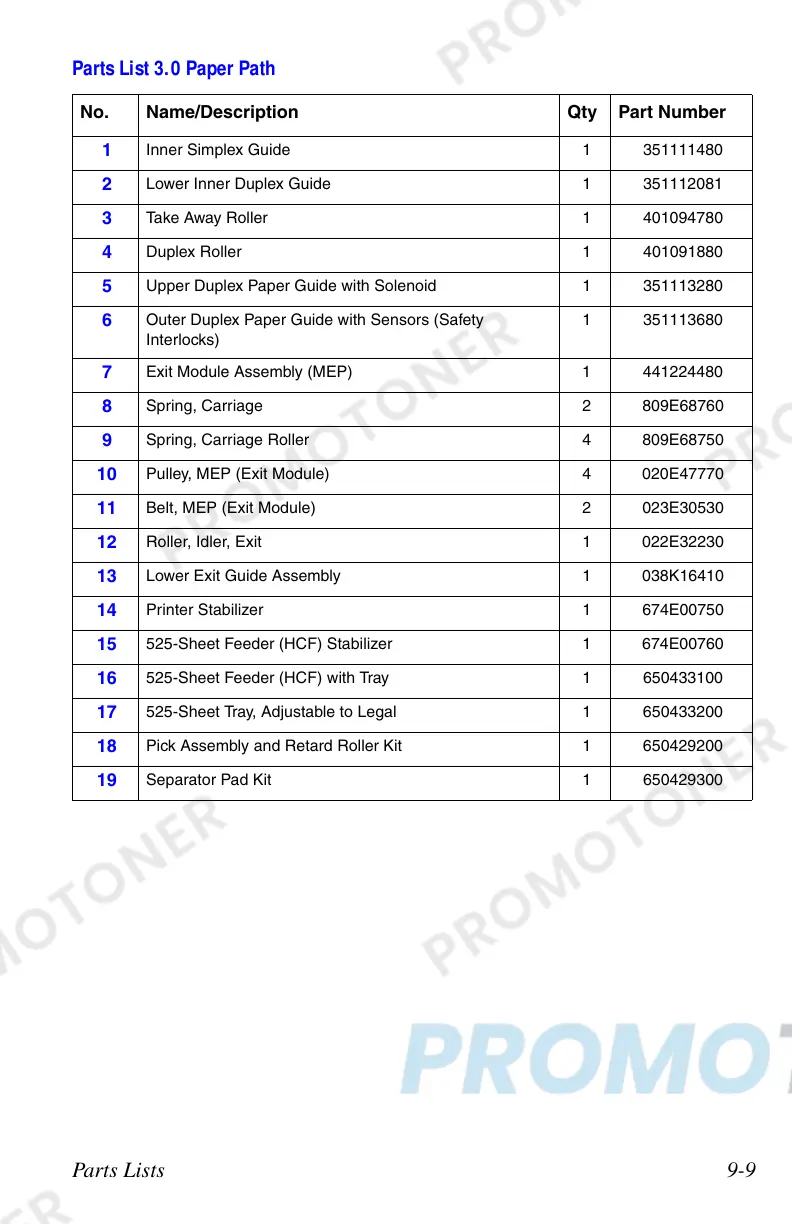

Parts List 3.0 Paper Path
No. Name/Description Qty Part Number
1
Inner Simplex Guide 1 351111480
2
Lower Inner Duplex Guide 1 351112081
3
Take Away Roller 1 401094780
4
Duplex Roller 1 401091880
5
Upper Duplex Paper Guide with Solenoid 1 351113280
6
Outer Duplex Paper Guide with Sensors (Safety
Interlocks)
1 351113680
7
Exit Module Assembly (MEP) 1 441224480
8
Spring, Carriage 2 809E68760
9
Spring, Carriage Roller 4 809E68750
10
Pulley, MEP (Exit Module) 4 020E47770
11
Belt, MEP (Exit Module) 2 023E30530
12
Roller, Idler, Exit 1 022E32230
13
Lower Exit Guide Assembly 1 038K16410
14
Printer Stabilizer 1 674E00750
15
525-Sheet Feeder (HCF) Stabilizer 1 674E00760
16
525-Sheet Feeder (HCF) with Tray 1 650433100
17
525-Sheet Tray, Adjustable to Legal 1 650433200
18
Pick Assembly and Retard Roller Kit 1 650429200
19
Separator Pad Kit 1 650429300
