Parts Lists 9-13

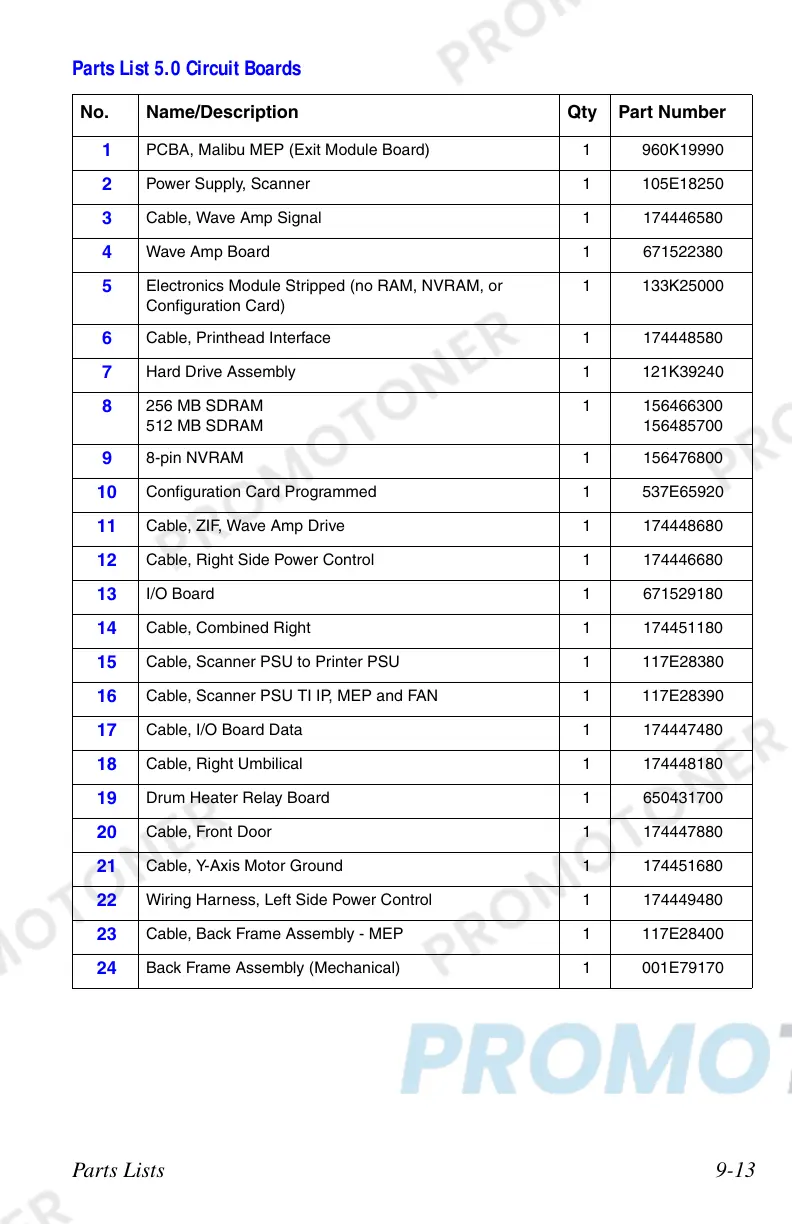

Parts List 5.0 Circuit Boards
No. Name/Description Qty Part Number
1
PCBA, Malibu MEP (Exit Module Board) 1 960K19990
2
Power Supply, Scanner 1 105E18250
3
Cable, Wave Amp Signal 1 174446580
4
Wave Amp Board 1 671522380
5
Electronics Module Stripped (no RAM, NVRAM, or
Configuration Card)
1 133K25000
6
Cable, Printhead Interface 1 174448580
7
Hard Drive Assembly 1 121K39240
8
256 MB SDRAM
512 MB SDRAM
1 156466300
156485700
9
8-pin NVRAM 1 156476800
10
Configuration Card Programmed 1 537E65920
11
Cable, ZIF, Wave Amp Drive 1 174448680
12
Cable, Right Side Power Control 1 174446680
13
I/O Board 1 671529180
14
Cable, Combined Right 1 174451180
15
Cable, Scanner PSU to Printer PSU 1 117E28380
16
Cable, Scanner PSU TI IP, MEP and FAN 1 117E28390
17
Cable, I/O Board Data 1 174447480
18
Cable, Right Umbilical 1 174448180
19
Drum Heater Relay Board 1 650431700
20
Cable, Front Door 1 174447880
21
Cable, Y-Axis Motor Ground 1 174451680
22
Wiring Harness, Left Side Power Control 1 174449480
23
Cable, Back Frame Assembly - MEP 1 117E28400
24
Back Frame Assembly (Mechanical) 1 001E79170
To Next Page
