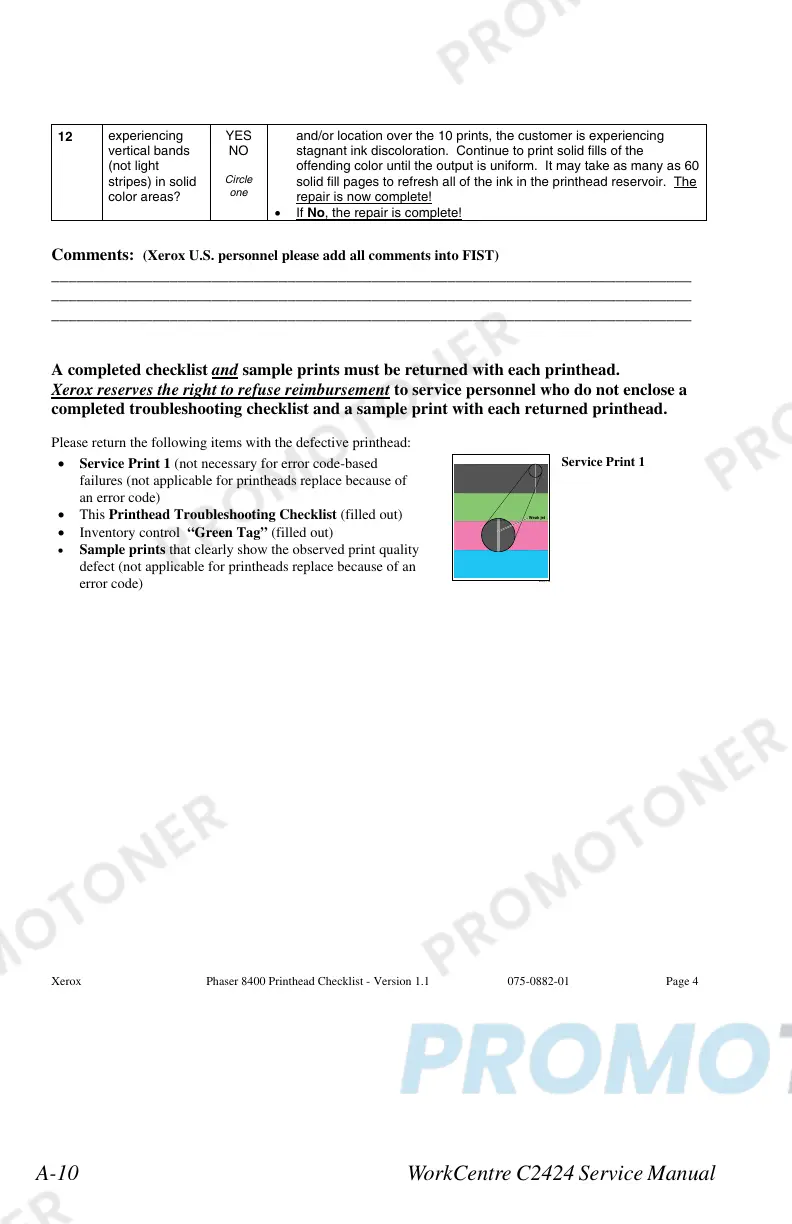

A-10 WorkCentre C2424 Service Manual
12
experiencing
vertical bands
(not light
stripes) in solid
color areas?
YES
NO
Circle
one
and/or location over the 10 prints, the customer is experiencing
stagnant ink discoloration. Continue to print solid fills of the
offending color until the output is uniform. It may take as many as 60
solid fill pages to refresh all of the ink in the printhead reservoir. The
repair is now complete!
x If No, the repair is complete!
Comments: (Xerox U.S. personnel please add all comments into FIST)
____________________________________________________________________________
____________________________________________________________________________
____________________________________________________________________________
A completed checklist and
sample prints must be returned with each printhead.
Xerox reserves the right to refuse reimbursement
to service personnel who do not enclose a
completed troubleshooting checklist and a sample print with each returned printhead.
Please return the following items with the defective printhead:
x Service Print 1 (not necessary for error code-based
failures (not applicable for printheads replace because of
an error code)
x This Printhead Troubleshooting Checklist (filled out)
x Inventory control “Green Tag” (filled out)
x Sample prints that clearly show the observed print quality
defect (not applicable for printheads replace because of an
error code)
Service Print 1
1 23 4 6 78 910 1112131415 1617181920 2122232425 2627282930 3132333435 363738394041 4243444546 4748495051 5253545556 5758596061 6263646566 67686970717273747576777879808182838485868788
5
1 23 4 6 78 910 1112131415 1617181920 2122232425 2627282930 3132333435 363738394041 4243444546 4748495051 5253545556 5758596061 6263646566 67686970717273747576777879808182838485868788
5
1 23 4 6 78 910 1112131415 1617181920 2122232425 2627282930 3132333435 363738394041 4243444546 4748495051 5253545556 5758596061 6263646566 67686970717273747576777879808182838485868788
5
7475 7677 7879 80
Weak jet
9923-114
1 23 4 6 78 910 1112131415 1617181920 2122232425 2627282930 3132333435 363738394041 4243444546 4748495051 5253545556 5758596061 6263646566 67686970717273747576777879808182838485868788
5
Xerox Phaser 8400 Printhead Checklist - Version 1.1 075-0882-01
Page 4
