Xerox WorkCentre C2424DX

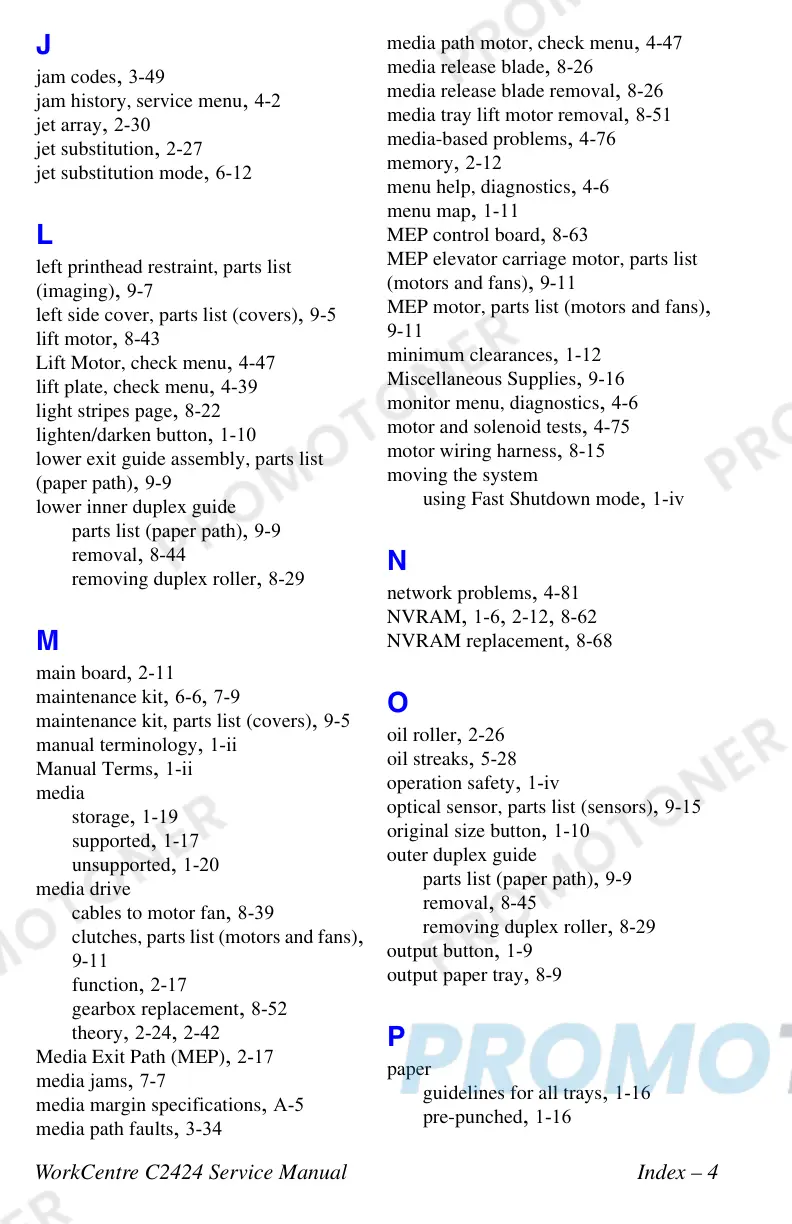

WorkCentre C2424 Service Manual Index – 4
J
jam codes, 3-49
jam history, service menu
, 4-2
jet array
, 2-30
jet substitution
, 2-27
jet substitution mode
, 6-12
L
left printhead restraint, parts list
(imaging)
, 9-7
left side cover, parts list (covers)
, 9-5
lift motor
, 8-43
Lift Motor, check menu
, 4-47
lift plate, check menu
, 4-39
light stripes page
, 8-22
lighten/darken button
, 1-10
lower exit guide assembly, parts list
(paper path)
, 9-9
lower inner duplex guide
parts list (paper path)
, 9-9
removal
, 8-44
removing duplex roller
, 8-29
M
main board, 2-11
maintenance kit
, 6-6, 7-9
maintenance kit, parts list (covers)
, 9-5
manual terminology
, 1-ii
Manual Terms
, 1-ii
media
storage
, 1-19
supported
, 1-17
unsupported
, 1-20
media drive
cables to motor fan
, 8-39
clutches, parts list (motors and fans)
,
9-11
function
, 2-17
gearbox replacement
, 8-52
theory
, 2-24, 2-42
Media Exit Path (MEP)
, 2-17
media jams
, 7-7
media margin specifications
, A-5
media path faults
, 3-34
media path motor, check menu
, 4-47
media release blade
, 8-26
media release blade removal
, 8-26
media tray lift motor removal
, 8-51
media-based problems
, 4-76
memory
, 2-12
menu help, diagnostics
, 4-6
menu map
, 1-11
MEP control board
, 8-63
MEP elevator carriage motor, parts list
(motors and fans)
, 9-11
MEP motor, parts list (motors and fans)
,
9-11
minimum clearances
, 1-12
Miscellaneous Supplies
, 9-16
monitor menu, diagnostics
, 4-6
motor and solenoid tests
, 4-75
motor wiring harness
, 8-15
moving the system
using Fast Shutdown mode
, 1-iv
N
network problems, 4-81
NVRAM
, 1-6, 2-12, 8-62
NVRAM replacement
, 8-68
O
oil roller, 2-26
oil streaks
, 5-28
operation safety
, 1-iv
optical sensor, parts list (sensors)
, 9-15
original size button
, 1-10
outer duplex guide
parts list (paper path)
, 9-9
removal
, 8-45
removing duplex roller
, 8-29
output button
, 1-9
output paper tray
, 8-9
P
paper
guidelines for all trays
, 1-16
pre-punched
, 1-16
